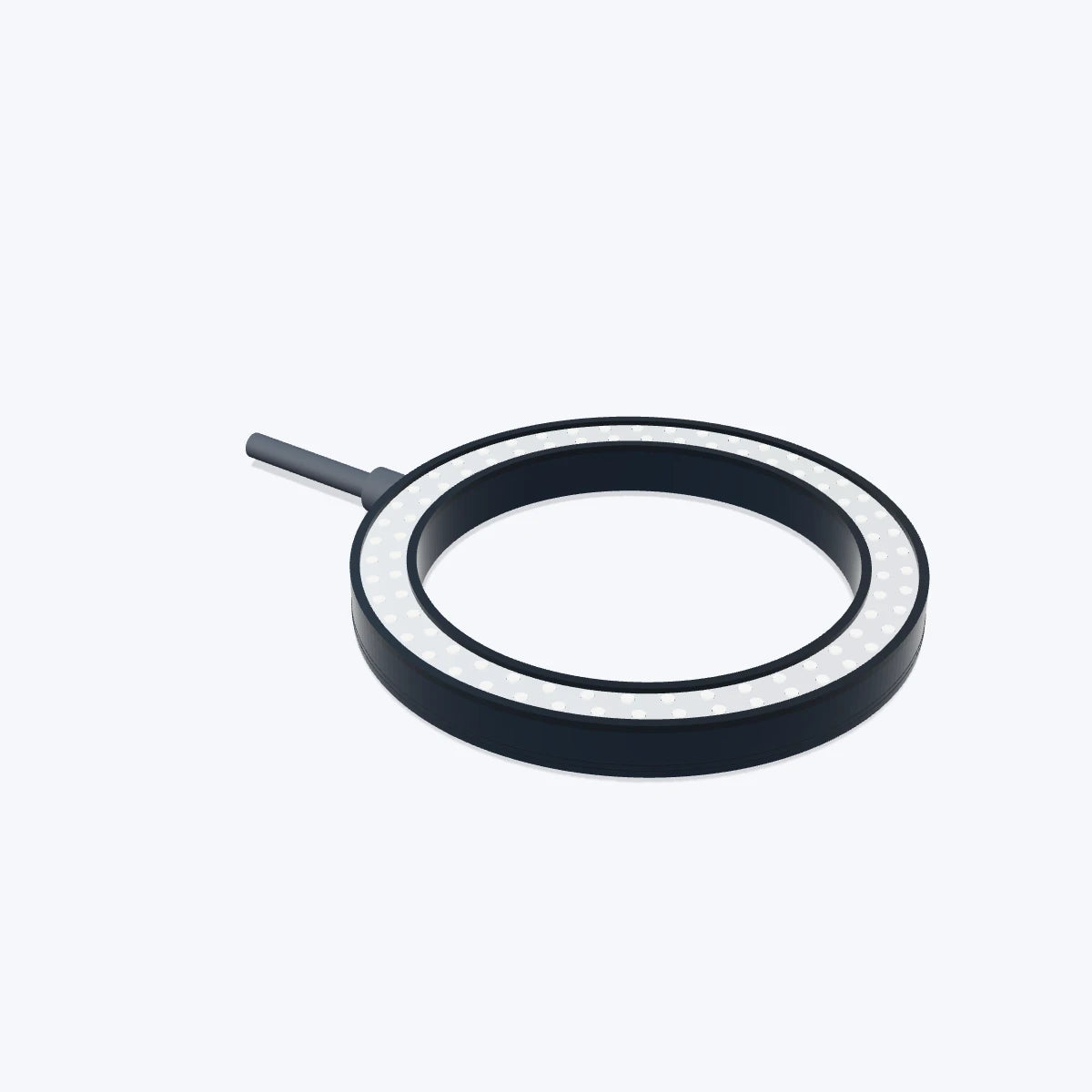

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Ring lights

200 mm dia. ring light with diffuser, 90° (LS-RNG-0158)

Model LS-RNG-0158

ColourRed, Blue, White
Voltage24 V
Angle90°
TypeDiffused

$399.00

Ships in 2-3 weeks

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring light with a uniformity diffuser; light angle (between the light direction and the horizontal line) of 30, 45, 60 or 90 degrees, SMD and DIP LEDs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0158
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support
Angle (°)	90

Light

LED SMD	yes
LED DIP	yes
Uniformity diffuser	yes
Wavelength red	620-630 nm
Wavelength blue	460-470 nm
Colour temperature white	6000-7500 K

Environment and compliance

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power SMD red (W)	13.4
Power SMD blue/white (W)	21.1
Power DIP red (W)	11.3
Power DIP blue/white (W)	17.5
Voltage (V)	24

Mechanical

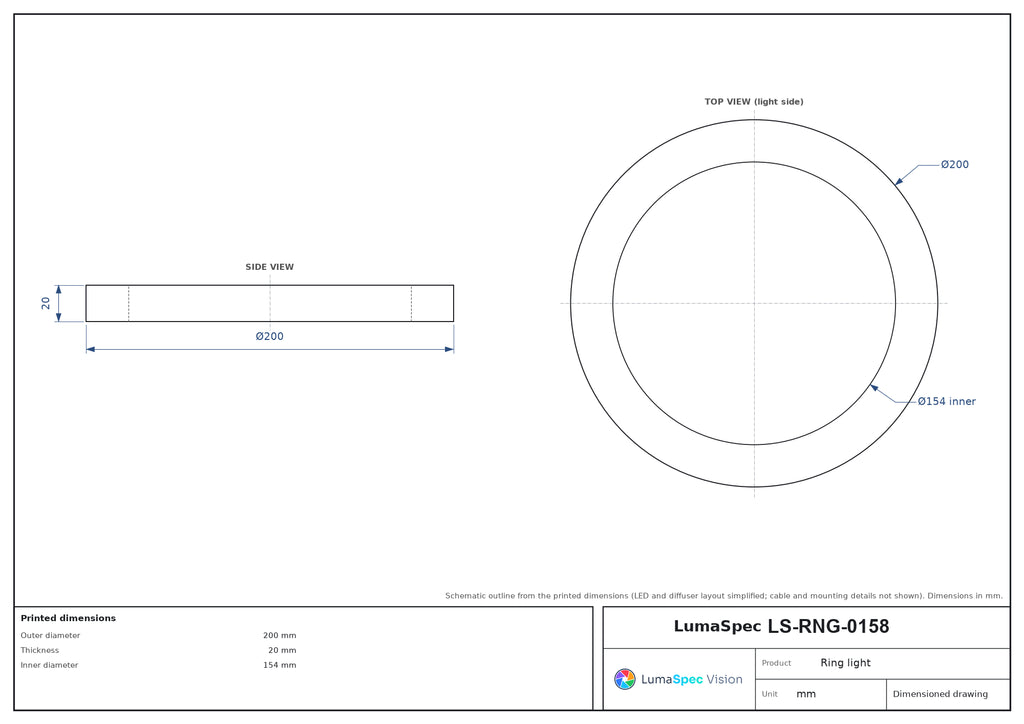

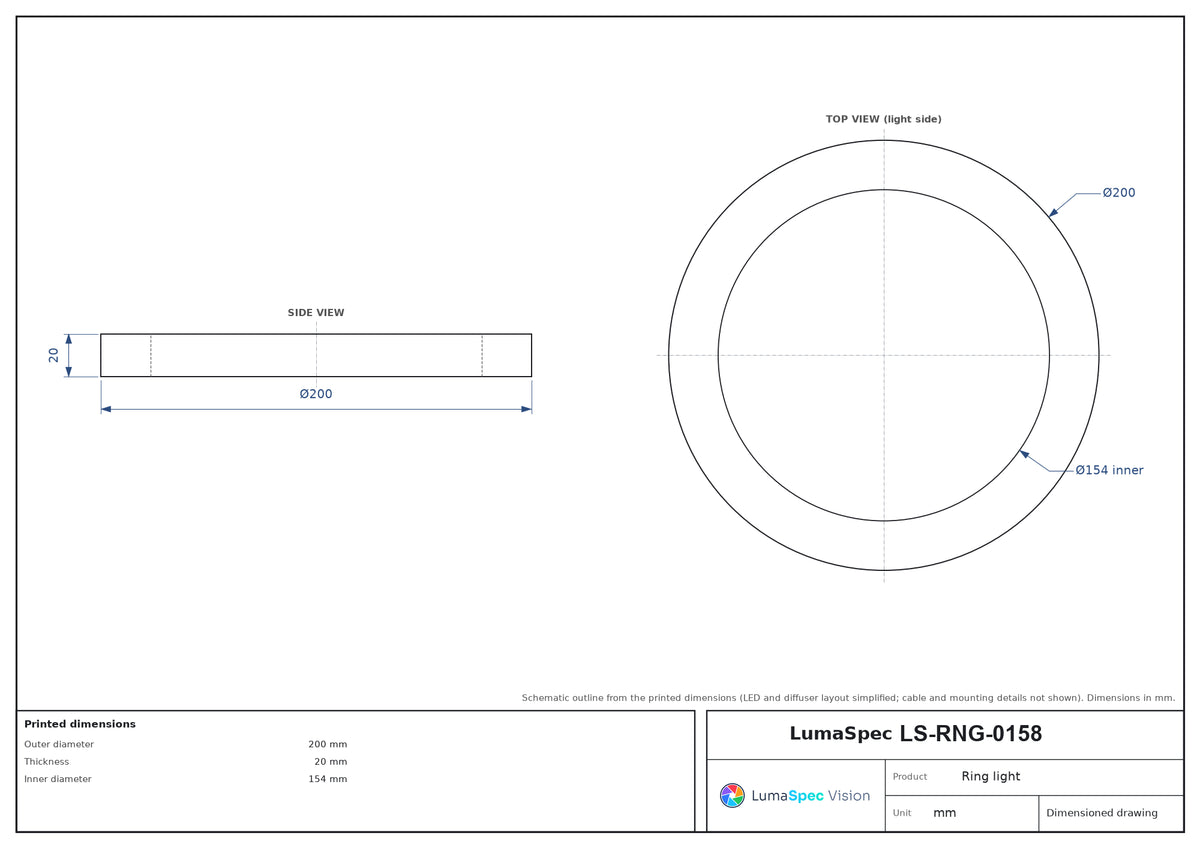

Wire length	500 mm (drawing)
Inner diameter (mm)	154
Outer diameter (mm)	200
Thickness (mm)	20
Shipping weight	0.60 kg

Downloads

Datasheet (PDF)LS-RNG-0158 · 1.4 MB

Features

Uniformity diffuser on every model
Light angles 30, 45, 60 and 90 degrees
SMD and DIP LED versions
Three-colour RGB light source, diameter/height, wavelength/colour temperature, illumination angle, mounting and wire length customization
Optional DIP/SMD lamp bead type.
Outside diameter: 60mm, Inside diameter: 22mm, Thickness: 20mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.

Applications

Surface bumps, scratches and other defects detection
Print character, mark, bar code, fingerprint image recognition
Auto parts defect detection
Nut defect detection
