Ring lights

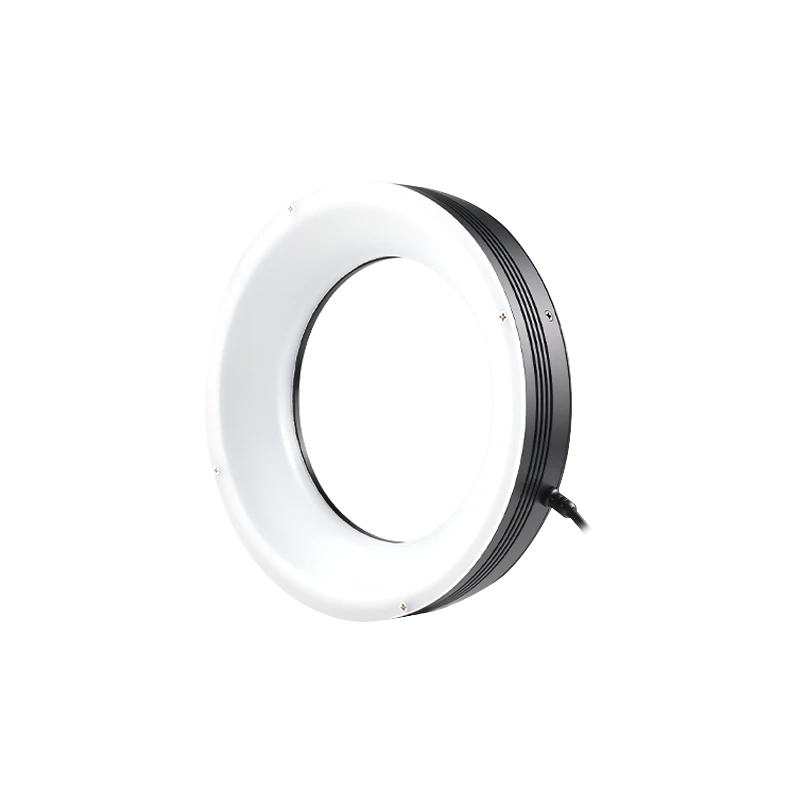

180 mm dia. ring light with diffuser, 45° (LS-RNG-0156)

Model LS-RNG-0156

ColourRed, Blue, White
Voltage24 V
Angle45°
TypeDiffused

$339.00

Ships in 2-3 weeks

0.55 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring light with a uniformity diffuser; light angle (between the light direction and the horizontal line) of 30, 45, 60 or 90 degrees, SMD and DIP LEDs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0156
Category	45° Ring light
Terminal Plug	Flat head 3PIN 2 pin
Cooling	Natural air cooling
Electrical insulation capacity	DC500V Insulation resistance >20 megohms
Pressure Resistance Requirements	AC1000V; 10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support
Angle (°)	45

Interfaces and I/O

Cable length	0.5m
Connector Definition	1 : positive (+) red; 2 : left blank; 3 : negative (-) black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

Uniformity diffuser	√
LED type	SMD/DIP
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: -; blue: 465-470nm; green: 525-530nm
Color temperature	red: -; white: 6000K-6500K; blue: -; green
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing)
Lifespan	Under our specified conditions of use, 50,000 hours for red light and 30,000 hours for white light, the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power SMD red (W)	15.1
Power SMD blue/white (W)	23.8
Power DIP red (W)	10.3
Power DIP blue/white (W)	15.9
Voltage (V)	24

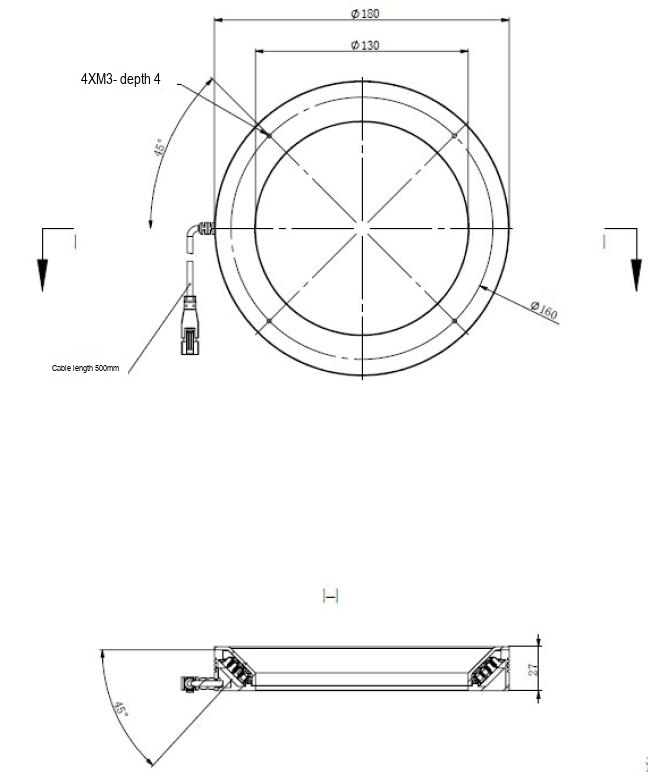

Mechanical

Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N, time 5 minutes contact area: diameter 30MM Energy level: 5J elements: steel ball diameter 50MM, 500g ± 25g
Inner diameter (mm)	130
Outer diameter (mm)	180
Thickness (mm)	27
Shipping weight	0.55 kg

Downloads

Datasheet (PDF)LS-RNG-0156 · 1.4 MB

Features

Uniformity diffuser on every model
Light angles 30, 45, 60 and 90 degrees
SMD and DIP LED versions
Three-colour RGB light source, diameter/height, wavelength/colour temperature, illumination angle, mounting and wire length customization
Optional DIP/SMD lamp bead type.
Outside diameter: 60mm, Inside diameter: 22mm, Thickness: 20mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.

Applications

Surface bumps, scratches and other defects detection
Print character, mark, bar code, fingerprint image recognition
Auto parts defect detection
Nut defect detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
