Ring lights

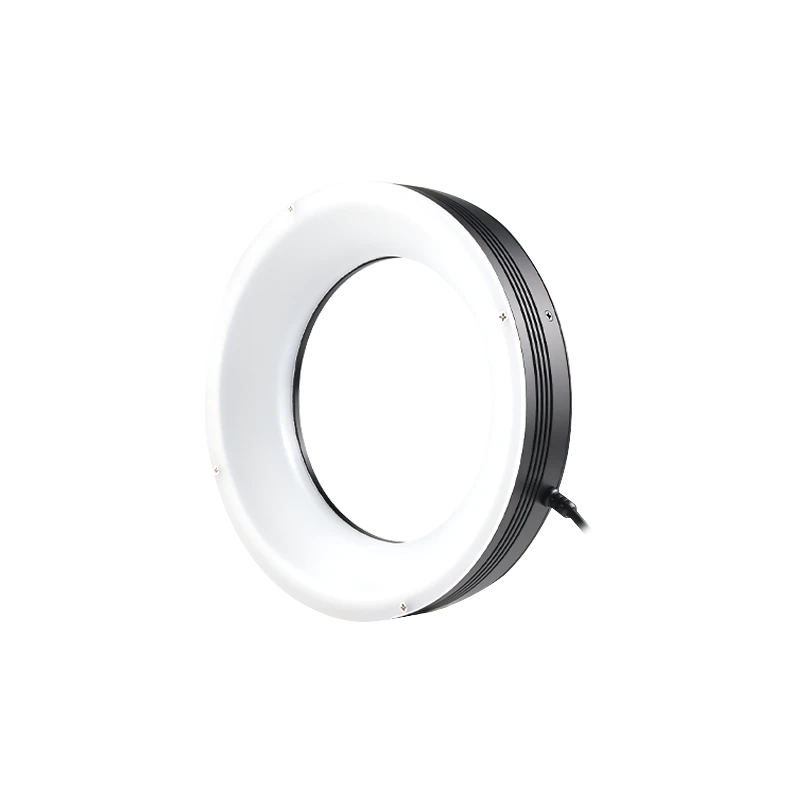

60 mm dia. ring light with diffuser, 60° (LS-RNG-0127)
Model LS-RNG-0127
- ColourRed, Blue, White
- Voltage24 V
- Angle60°
- TypeDiffused
$109.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light with a uniformity diffuser; light angle (between the light direction and the horizontal line) of 30, 45, 60 or 90 degrees, SMD and DIP LEDs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0127 |
|---|---|
| Category | 60° Ring light |
| Terminal Plug | Flat head 3PIN 2 pin |
| Cooling | Natural air cooling |
| Electrical insulation capacity | DC500V Insulation resistance >20 megohms |
| Pressure Resistance Requirements | AC1000V; 10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
| Angle (°) | 60 |
Interfaces and I/O
| Cable length | 0.5m |
|---|---|
| Connector Definition | 1 : positive (+) red; 2 : left blank; 3 : negative (-) black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| Uniformity diffuser | √ |
|---|---|
| LED type | SMD/DIP |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: -; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: -; white: 6000K-6500K; blue: -; green |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use, 50,000 hours for red light and 30,000 hours for white light, the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Power SMD red (W) | 2.7 |
| Power SMD blue/white (W) | 2.9 |
| Power DIP red (W) | 1.6 |
| Power DIP blue/white (W) | 2.2 |
| Voltage (V) | 24 |

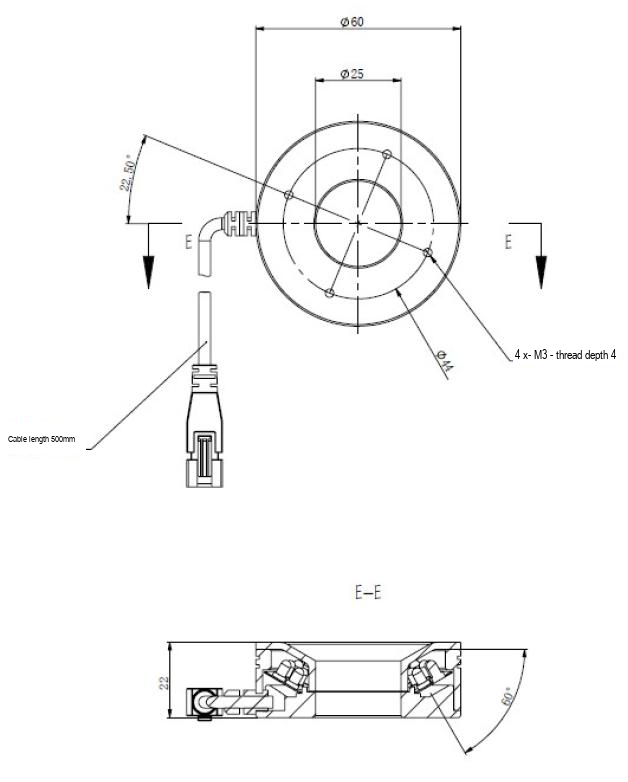

Mechanical
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
|---|---|
| Shell Hardness Parameters | Static load 230N±10N, time 5 minutes contact area: diameter 30MM Energy level: 5J elements: steel ball diameter 50MM, 500g ± 25g |
| Inner diameter (mm) | 25 |
| Outer diameter (mm) | 60 |
| Thickness (mm) | 22 |
| Shipping weight | 0.20 kg |
