Ring lights

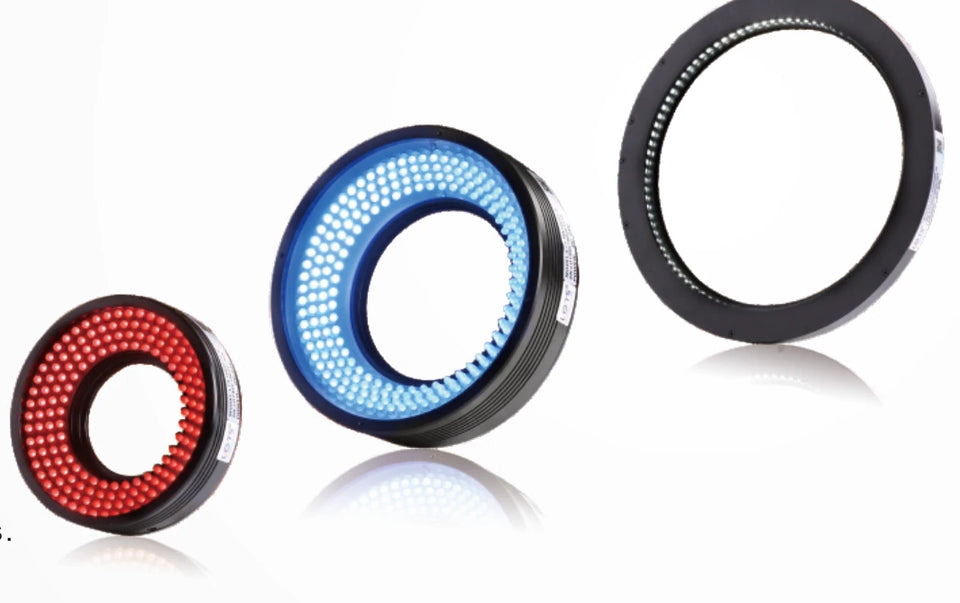

Ultraviolet light (LS-RNG-S46)
- 13 models
- from $159.00
- Series LS-RNG-S46
The Ultraviolet light (LS-RNG-S46) is a range of 13 ring lights from LumaSpec Vision, from $159.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- UV
- Size
- 50-100 mm, 100-200 mm
- Type
- Standard
- Voltage
- 24 V
- Wavelength
- 405 nm
Features
- Wavelength optional: 365-405 nm
- For high precision applications
- Wavelength optional: 365-405nm
- Use for high precision applications
Typical uses
- Metal surface tiny scratch inspection
- Fake currency inspection
- UV curing printed ink
- Cigarette case anti-fake inspection
- Imaging example: electrocircuit inspection on plastic film (LS-CXL-0260)
All 13 models in the Ultraviolet light (LS-RNG-S46)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0902 | 2.0W | Out dia. 50,Inner dia. 28.5,Height 19.5mm | Ring ultraviolet light | $159.00 | View | |
| LS-RNG-0897 | 50 x 50 | 3.6W | L64xW64xH17(mm) | Back ultraviolet light | $189.00 | View |
| LS-RNG-0903 | 3.6W | Out dia. 70,Inner dia. 36,Height 20.5mm | Ring ultraviolet light | $209.00 | View | |
| LS-RNG-0892 | 60 x 16 | 1.5W | L72xW22xH26(mm) | Bar ultraviolet light | $209.00 | View |
| LS-RNG-0898 | 70 x 70 | 5.8W | L84xW84xH17(mm) | Back ultraviolet light | $239.00 | View |
| LS-RNG-0893 | 30 | 3.6W | L87xW36xH26(mm) | Bar ultraviolet light | $249.00 | View |
| LS-RNG-0899 | 80 x 80 | 7.2W | L94xW94xH17(mm) | Back ultraviolet light | $259.00 | View |
| LS-RNG-0894 | 90 x 16 | 2.2W | L102xW22xH26(mm) | Bar ultraviolet light | $279.00 | View |
| LS-RNG-0900 | 100 x 100 | 11.6W | L114xW114xH17(mm) | Back ultraviolet light | $309.00 | View |
| LS-RNG-0904 | 7.2W | Out dia. 120,Inner dia. 80,Height 23mm | Ring ultraviolet light | $319.00 | View | |
| LS-RNG-0895 | 30 | 6.0W | L137xW36xH26(mm) | Bar ultraviolet light | $359.00 | View |
| LS-RNG-0901 | 150 x 150 | 19.2W | L164xW164xH17(mm) | Back ultraviolet light | $419.00 | View |
| LS-RNG-0896 | 180 x 16 | 5.1W | L192xW22xH26(mm) | Bar ultraviolet light | $479.00 | View |
