Ring lights

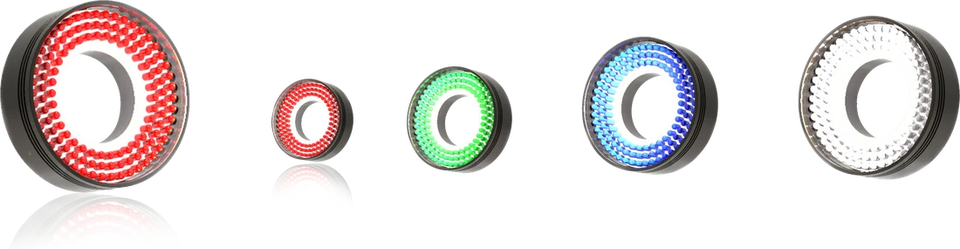

Ring light (LS-RNG-S55)
- 47 models
- from $119.00
- Series LS-RNG-S55
The Ring light (LS-RNG-S55) is a range of 47 ring lights from LumaSpec Vision, from $119.00. It comes in 27 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 32 mm OD, 35 mm OD, 42 mm OD, 48 mm OD, 50 mm OD, 60 mm OD, 66 mm OD, 70 mm OD, 72 mm OD, 74 mm OD, 75 mm OD, 90 mm OD, 96 mm OD, 100 mm OD, 110 mm OD, 114 mm OD and 11 more
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Angle
- Low angle (0-15°), 30°, 45°, 60°, 90°
- Voltage
- 24 V
Features
- Angles customizable to requirements.
- Wavelength and color temperature are optional, and different color combinations are also available.
- Compact design, easy installation.
- High-density LED array for even brightness.
- Optional diffuser for uniform light.
Typical uses
- Size/recognition
- Microscope illumination
- LCD calibration
- 2D code reading
All 47 models in the Ring light (LS-RNG-S55)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0233 | 32 mm OD | 70 | 2 | 32x10x16 | $119.00 | View |
| LS-RNG-0234 | 35 mm OD | 90 | 2 | 35x14x18 | $129.00 | View |
| LS-RNG-0235 | 42 mm OD | 65 | 2 | 42x18x18 | $139.00 | View |
| LS-RNG-0238 | 50 mm OD | 45 | 3 | 50x20x19 | $159.00 | View |
| LS-RNG-0239 | 50 mm OD | 60 | 2 | 50x24x16 | $159.00 | View |
| LS-RNG-0240 | 50 mm OD | 75 | 2 | 50x28x16 | $159.00 | View |
| LS-RNG-0241 | 50 mm OD | 90 | 2 | 50x25x19 | $159.00 | View |
| LS-RNG-0236 | 48 mm OD | 30 | 2 | 48x22x18.5 | $159.00 | View |
| LS-RNG-0237 | 50 mm OD | 30 | 2 | 50x24x16 | $159.00 | View |
| LS-RNG-0245 | 70 mm OD | 45 | 3 | 70x38x21 | $219.00 | View |
| LS-RNG-0246 | 70 mm OD | 60 | 3 | 70x30x20 | $219.00 | View |
| LS-RNG-0247 | 70 mm OD | 90 | 3 | 70x35x22 | $219.00 | View |
| LS-RNG-0243 | 66 mm OD | 30 | 3 | 66x30x22 | $219.00 | View |
| LS-RNG-0248 | 72 mm OD | 75 | 3 | 72x40x18 | $239.00 | View |
| LS-RNG-0250 | 74 mm OD | 60 | 3 | 74x35x20 | $239.00 | View |
| LS-RNG-0249 | 74 mm OD | 30 | 2 | 74x48x19 | $239.00 | View |
| LS-RNG-0251 | 75 mm OD | 0 | 1 | 75x47x9.8 | $239.00 | View |
| LS-RNG-0242 | 60 mm OD | 60 | 2 | 60x33.5x19.5 | $259.00 | View |
| LS-RNG-0244 | 60 mm OD | 60 | 3 | 60x30x17 | $259.00 | View |
| LS-RNG-0256 | 96 mm OD | 0 | 1 | 96x68x10 | $259.00 | View |
| LS-RNG-0258 | 100 mm OD | 75 | 4 | 100x55x17 | $269.00 | View |
| LS-RNG-0259 | 100 mm OD | 90 | 5 | 100x40x18 | $269.00 | View |
| LS-RNG-0257 | 100 mm OD | 30 | 3 | 100x70x22 | $269.00 | View |
| LS-RNG-0260 | 110 mm OD | 60 | 5 | 110x60x25 | $299.00 | View |
| LS-RNG-0253 | 90 mm OD | 45 | 4 | 90x46x21 | $309.00 | View |
| LS-RNG-0254 | 90 mm OD | 70 | 4 | 90x50x20 | $309.00 | View |
| LS-RNG-0255 | 90 mm OD | 80 | 6 | 90x30x20 | $309.00 | View |
| LS-RNG-0261 | 114 mm OD | 80 | 9 | 114x30x20 | $309.00 | View |
| LS-RNG-0252 | 90 mm OD | 15 | 2 | 90x52x20.6 | $309.00 | View |
| LS-RNG-0263 | 120 mm OD | 45 | 4 | 120x80x18 | $319.00 | View |
| LS-RNG-0264 | 120 mm OD | 50 | 4 | 120x60x31.5 | $319.00 | View |
| LS-RNG-0265 | 120 mm OD | 75 | 5 | 120x65x17 | $319.00 | View |
| LS-RNG-0266 | 120 mm OD | 90 | 6 | 120x76x18 | $319.00 | View |
| LS-RNG-0262 | 120 mm OD | 30 | 3 | 120x88x22 | $319.00 | View |
| LS-RNG-0267 | 132 mm OD | 15 | 3 | 132x96x22 | $349.00 | View |
| LS-RNG-0268 | 140 mm OD | 70 | 5 | 140x85x20 | $359.00 | View |
| LS-RNG-0269 | 146 mm OD | 0 | 1 | 146x118x9.8 | $379.00 | View |
| LS-RNG-0271 | 150 mm OD | 90 | 9 | 150x70x22 | $389.00 | View |
| LS-RNG-0270 | 150 mm OD | 30 | 4 | 150x120x22 | $389.00 | View |
| LS-RNG-0272 | 164 mm OD | 70 | 5 | 164x105x20 | $419.00 | View |
| LS-RNG-0273 | 176 mm OD | 0 | 1 | 176x148x9.8 | $449.00 | View |
| LS-RNG-0275 | 180 mm OD | 60 | 5 | 180x126x21 | $459.00 | View |
| LS-RNG-0276 | 180 mm OD | 80 | 8 | 180x100x20 | $459.00 | View |
| LS-RNG-0274 | 180 mm OD | 30 | 5 | 180x132x29 | $459.00 | View |
| LS-RNG-0279 | 210 mm OD | 60 | 7 | 210x145x25 | $599.00 | View |
| LS-RNG-0277 | 206 mm OD | 0 | 1 | 206x178x9.8 | $599.00 | View |
| LS-RNG-0278 | 208 mm OD | 25 | 3 | 208x182x22 | $599.00 | View |
