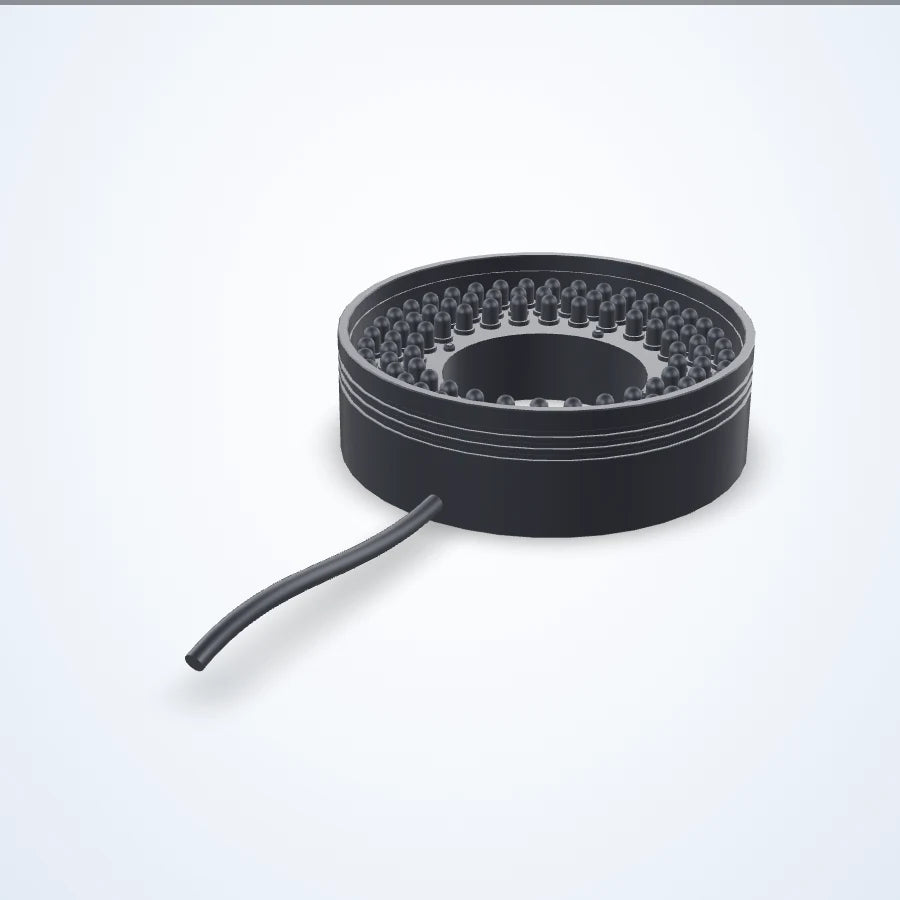

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Ring lights

70 mm OD LED Ring Light, 90° (LS-RNG-0247)

Model LS-RNG-0247

ColourRed, Green, Blue, White
Voltage24 V
Angle90°
TypeStandard

$219.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

70 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0247
Angle (°)	90
OD x ID x H (mm)	70x35x22

Light

LED rows	3
Colours	Red, Green, Blue, White
Illumination chart	LS-RNG-0240: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm

Electrical

Voltage (V)	24
Power R (W)	4
Power G/B/W (W)	4.6

Mechanical

Mounting (all drawn models)	4-M3 tapped holes, depth 4, on a P.C.D. (value per model)
Shipping weight (estimated)	0.25 kg

Mounting and drawing data

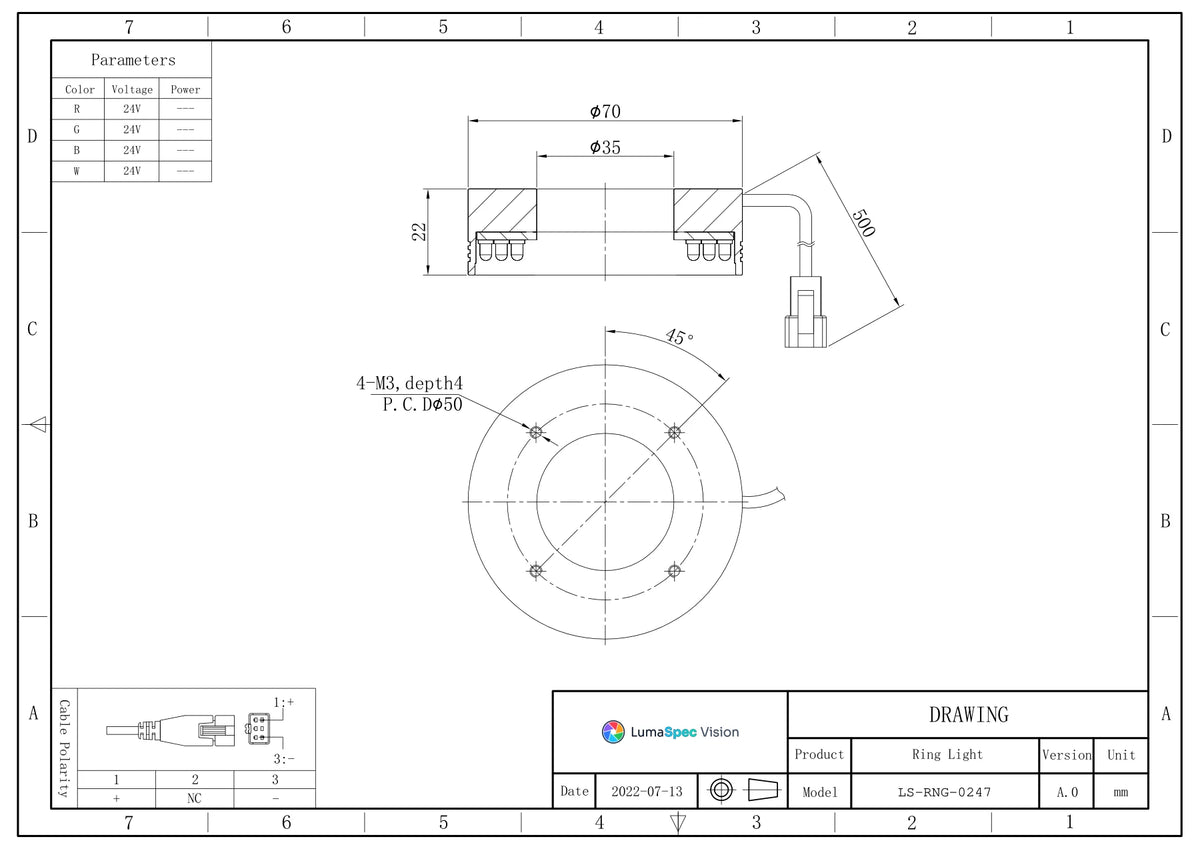

drawing : 4-M3 tapped holes depth 4 on P.C.D. φ50, at 45°; cable 500 mm

Downloads

Features

Angles customizable to requirements.
Wavelength and color temperature are optional, and different color combinations are also available.
Compact design, easy installation.
High-density LED array for even brightness.
Optional diffuser for uniform light.

Applications

Size/recognition
Microscope illumination
LCD calibration
2D code reading

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

LS-RNG-0247

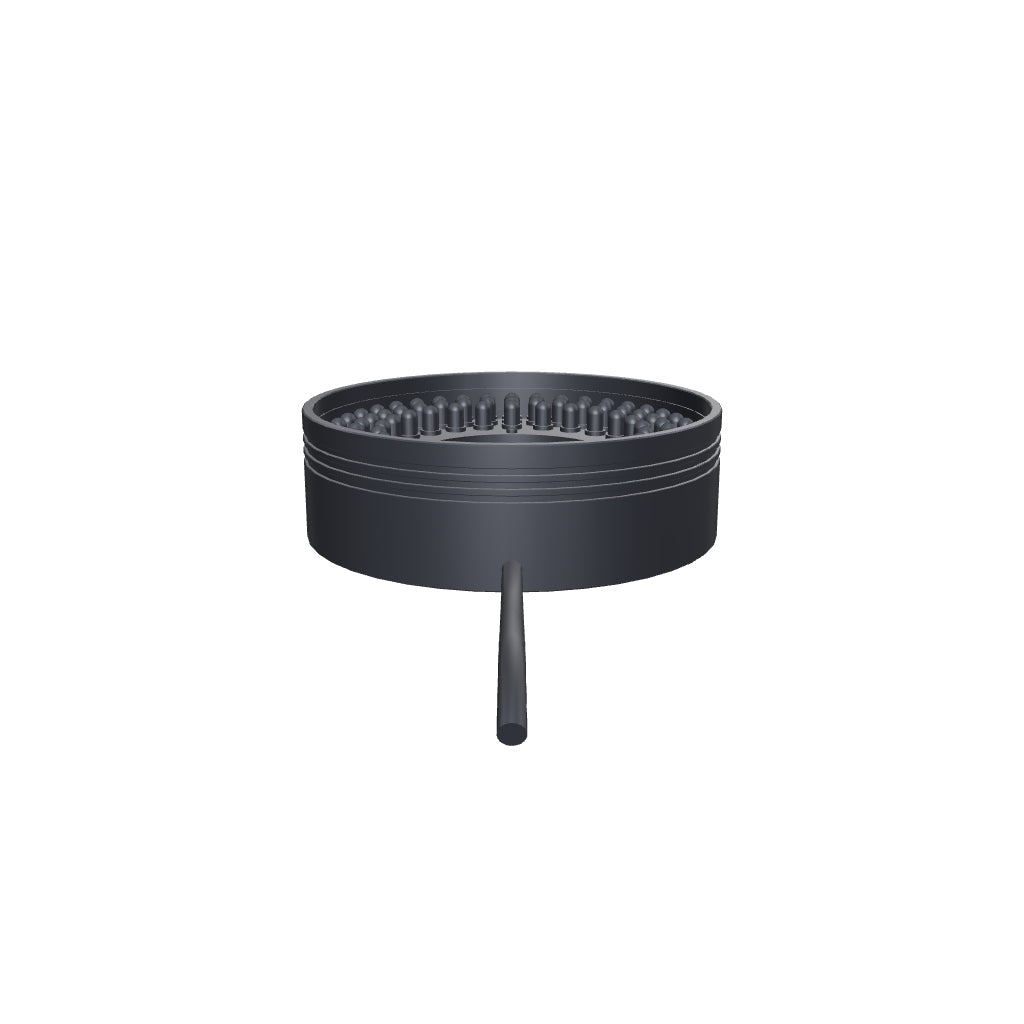

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

Source CAD

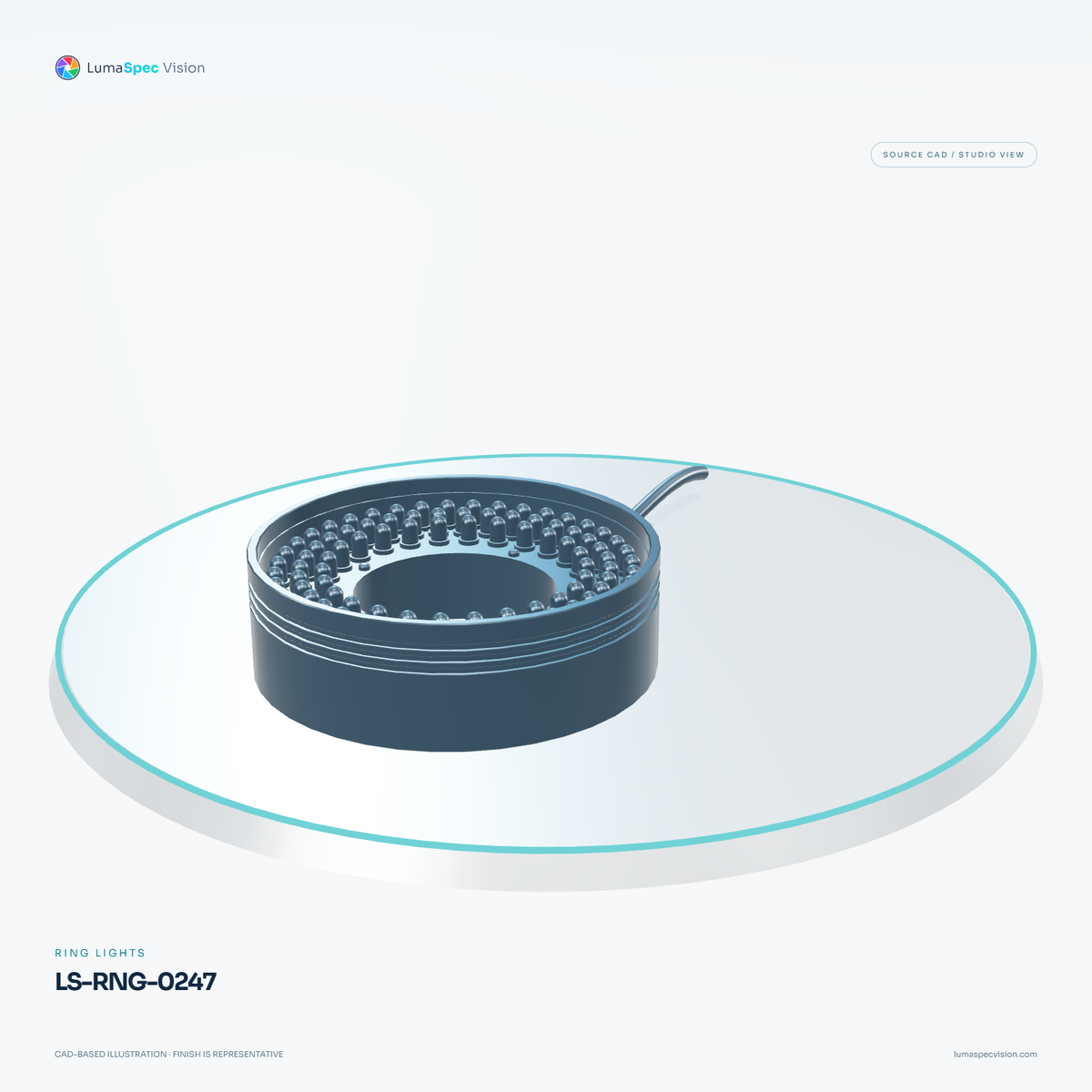

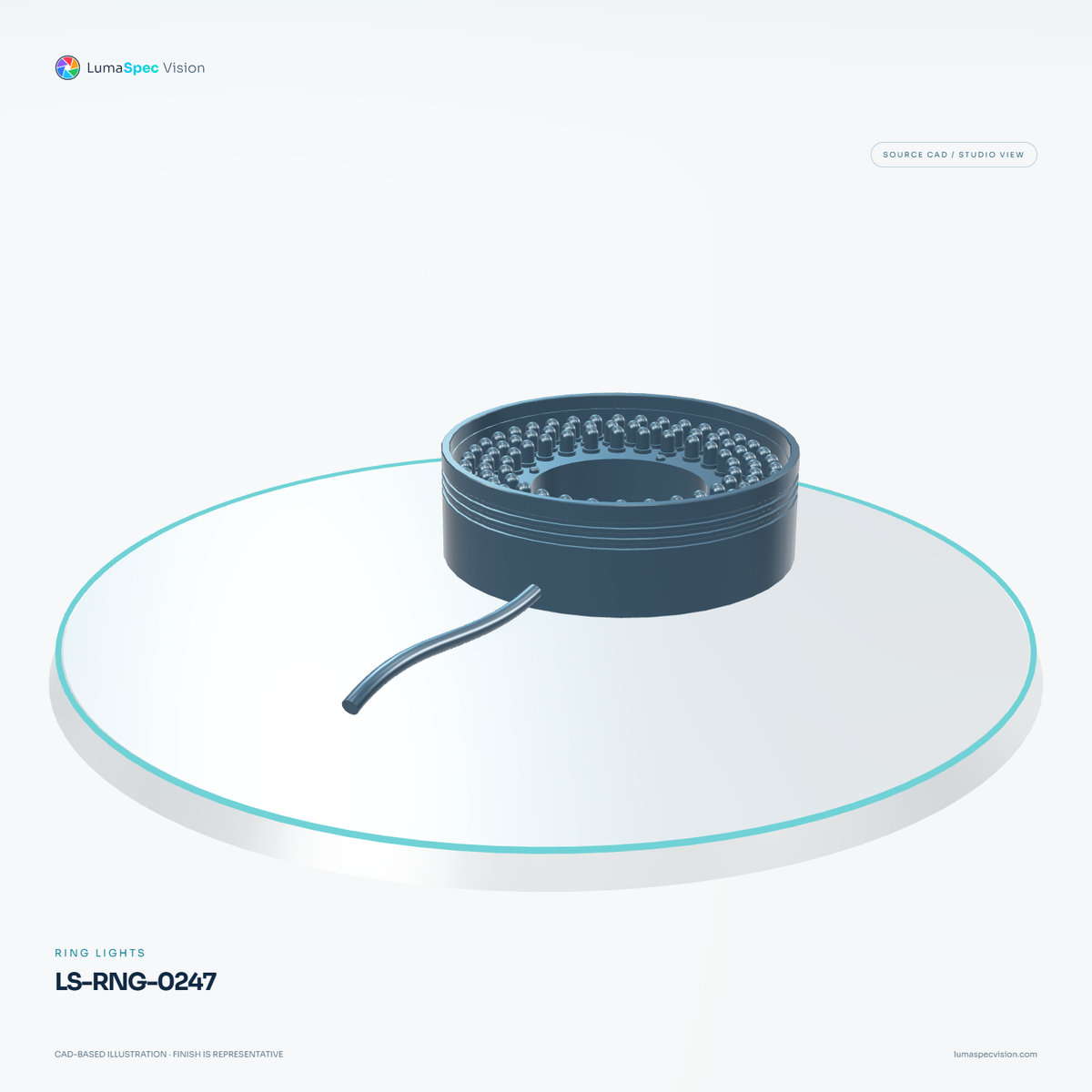

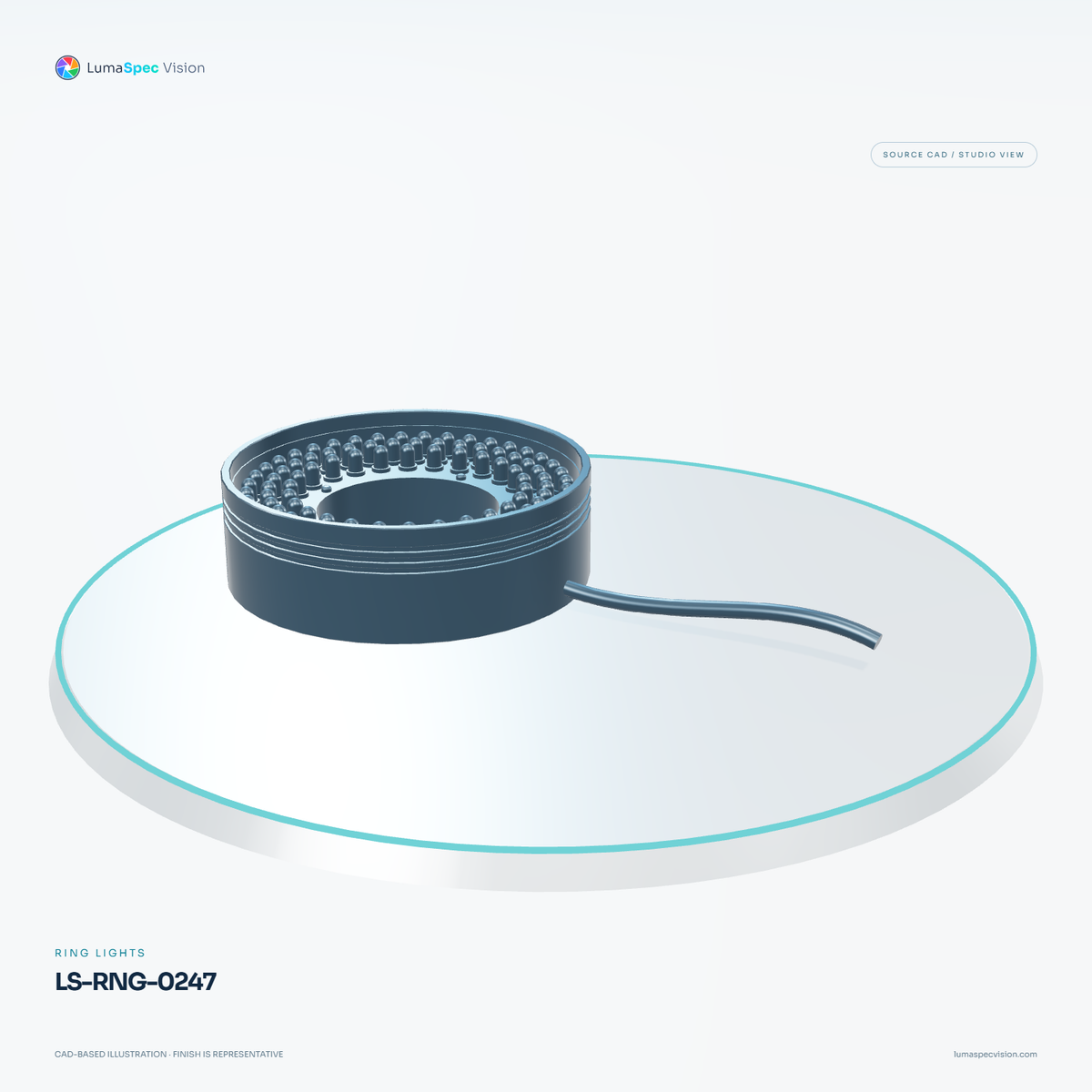

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

OD x ID x H (mm): 70x35x22
Voltage (V): 24
LED rows: 3
Angle (°): 90

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
