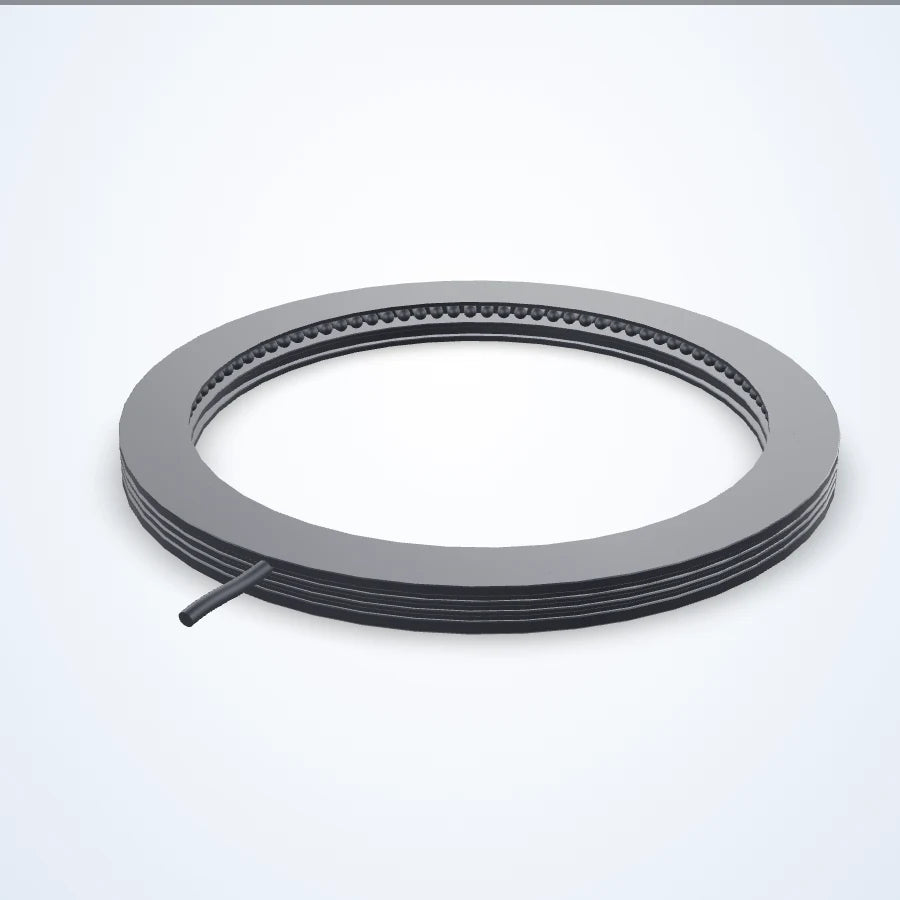

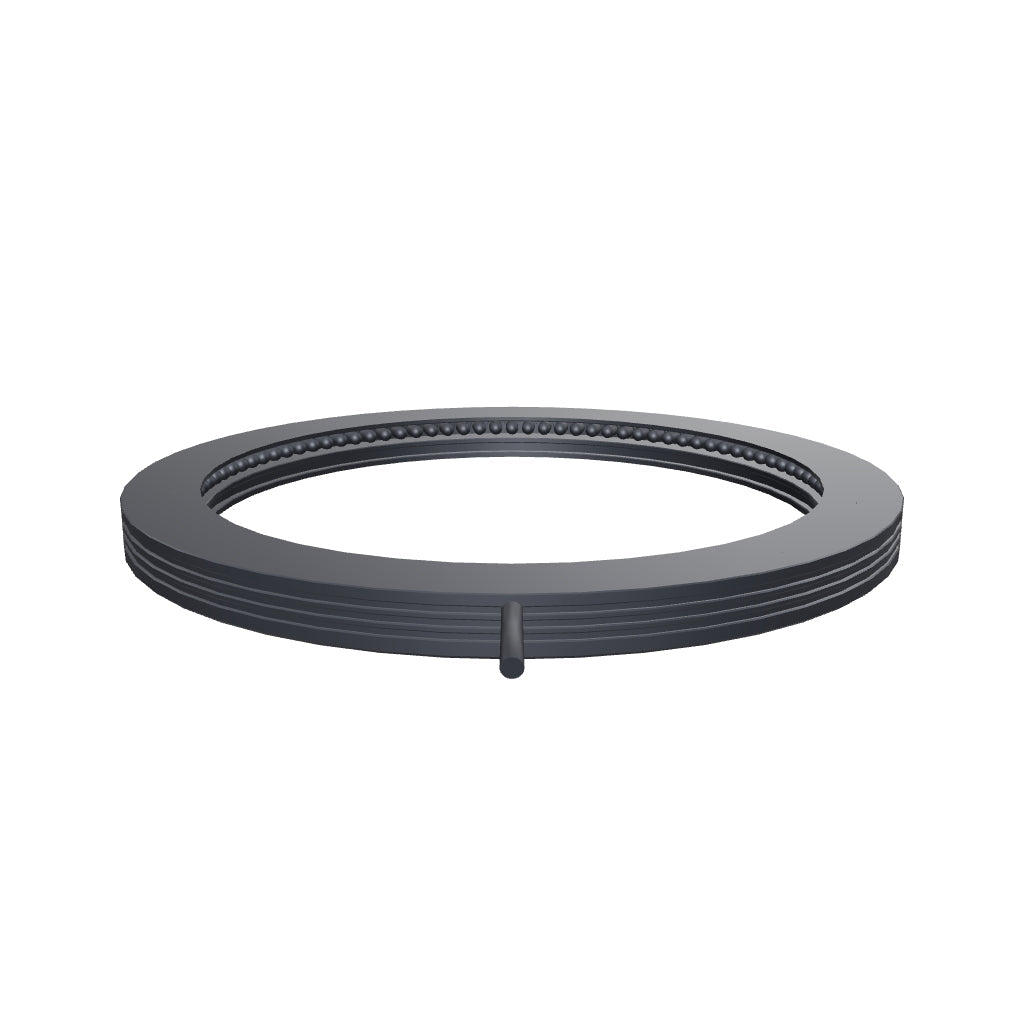

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Ring lights
146 mm OD LED Ring Light (LS-RNG-0269)
Model LS-RNG-0269
- ColourRed, Green, Blue, White
- Voltage24 V
- Angle0°
- TypeStandard
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
146 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0269 |
|---|---|
| Angle (°) | 0 |
| OD x ID x H (mm) | 146x118x9.8 |
Light
| LED rows | 1 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illumination chart | LS-RNG-0240: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 3 |
| Power G/B/W (W) | 4.5 |
Mechanical
| Mounting (all drawn models) | 4-M3 tapped holes, depth 4, on a P.C.D. (value per model) |
|---|---|
| Shipping weight (estimated) | 0.25 kg |
Mounting and drawing data

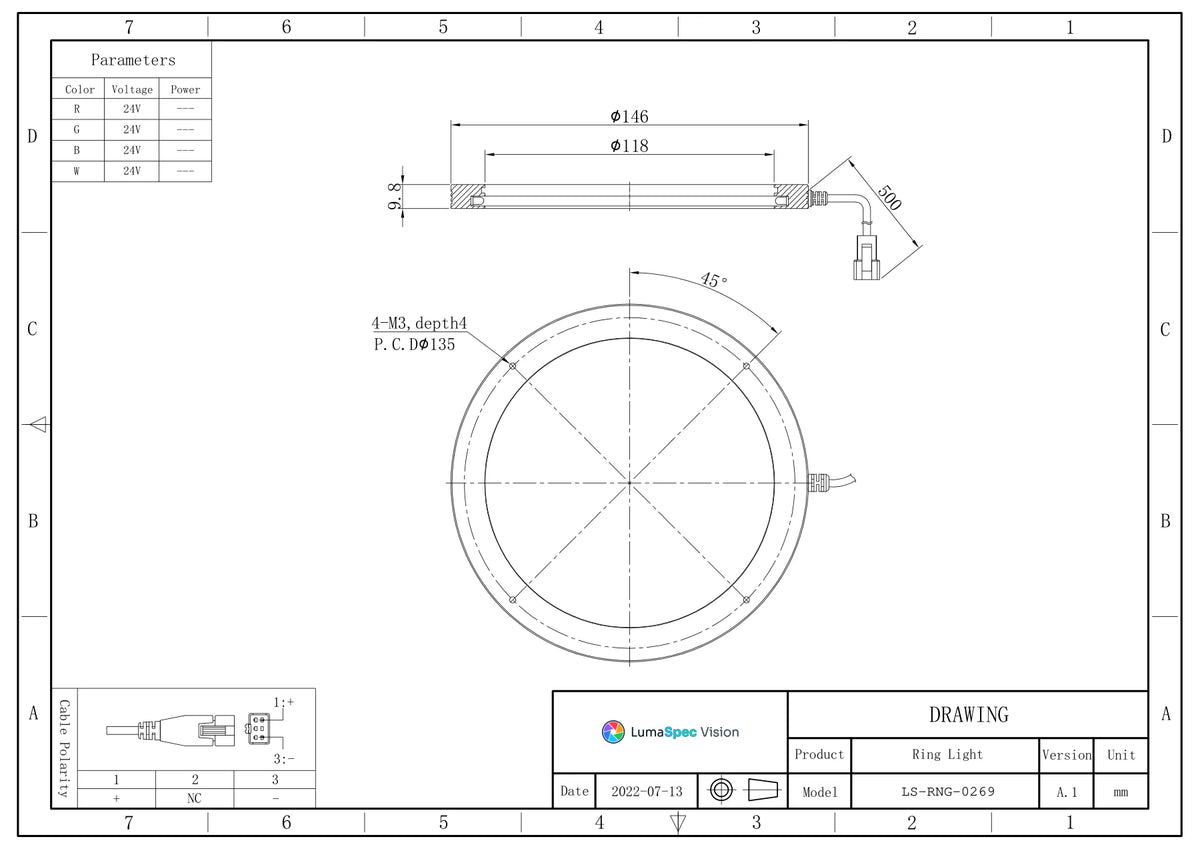

drawing : 4-M3 tapped holes depth 4 on P.C.D. φ135, at 45°; cable 500 mm
LS-RNG-0269

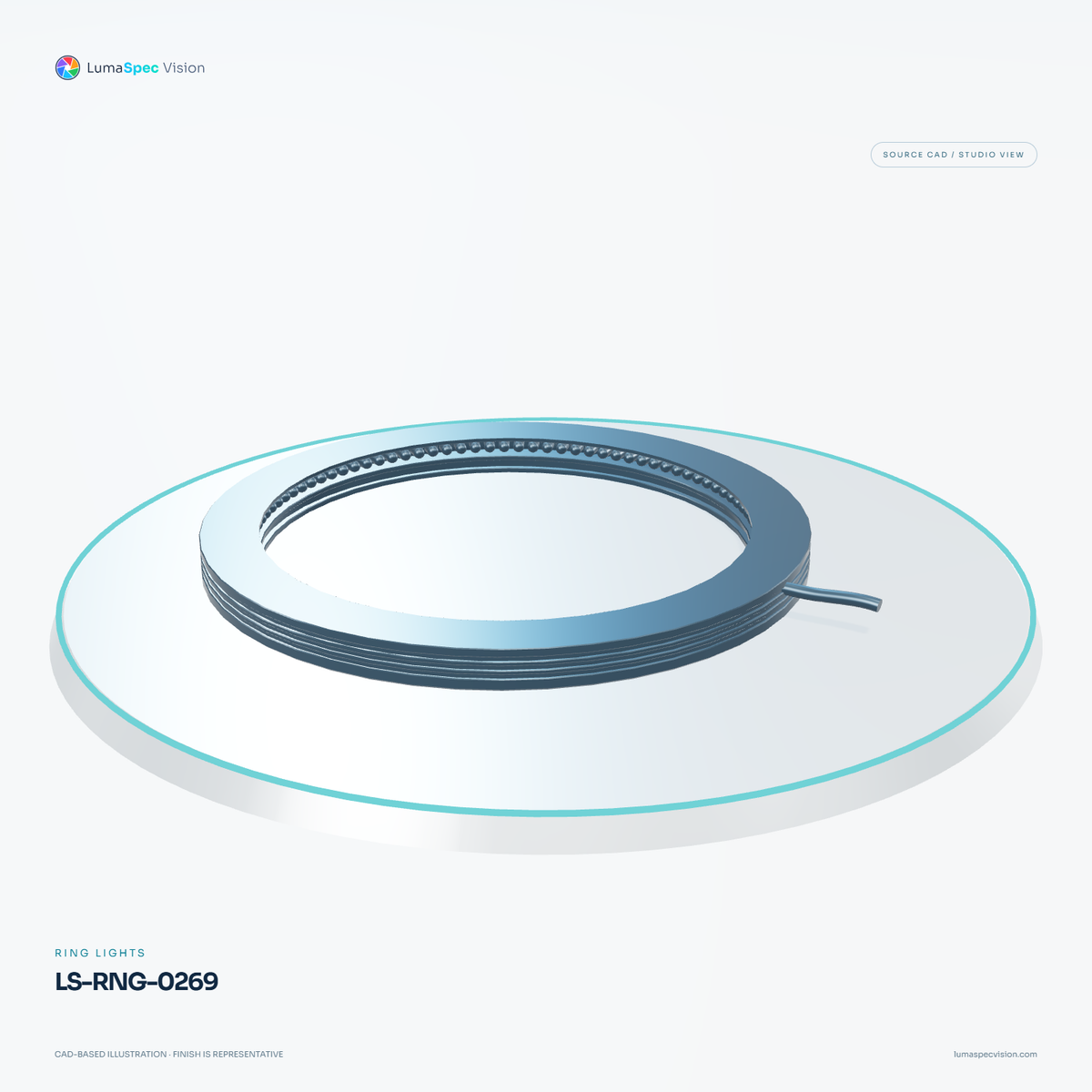

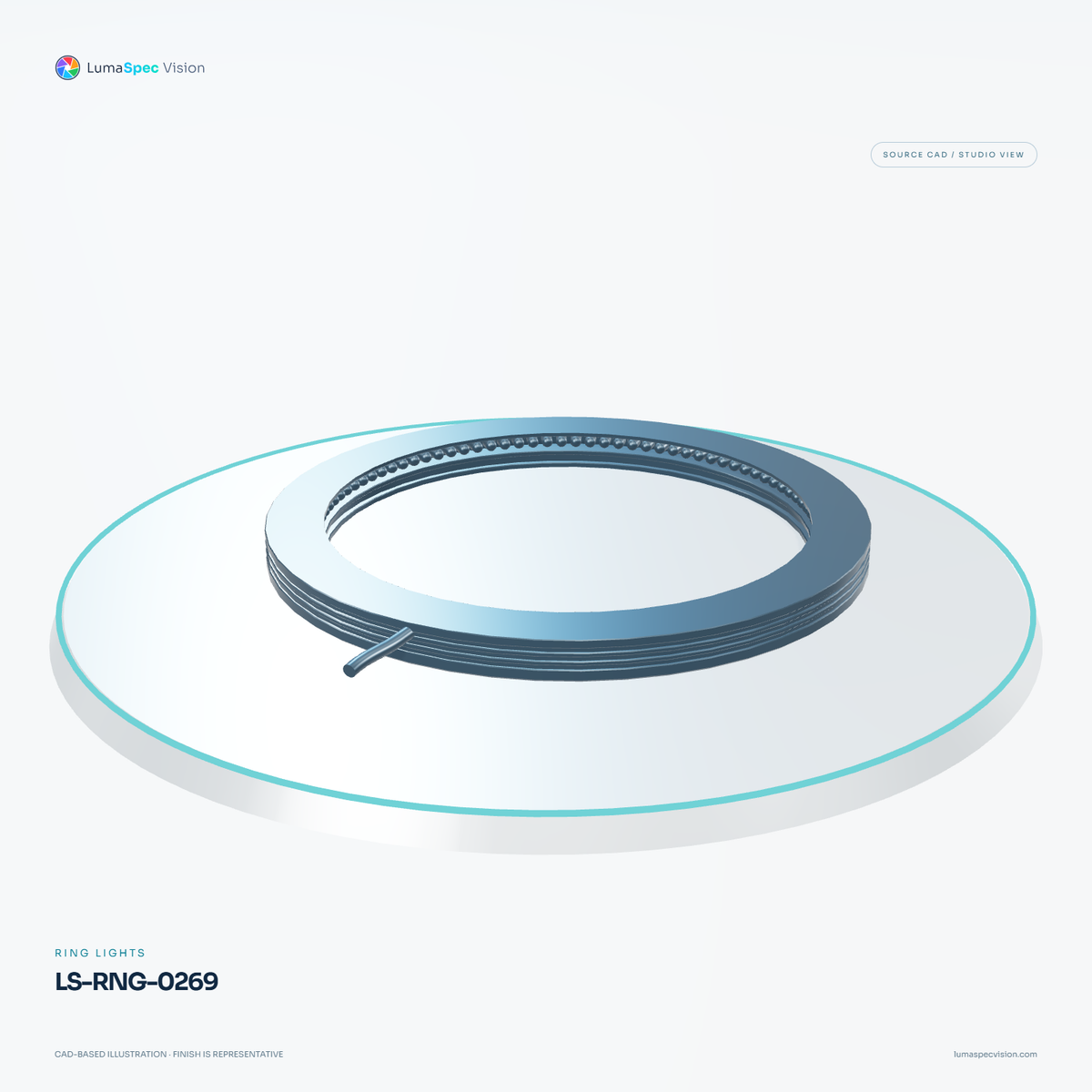

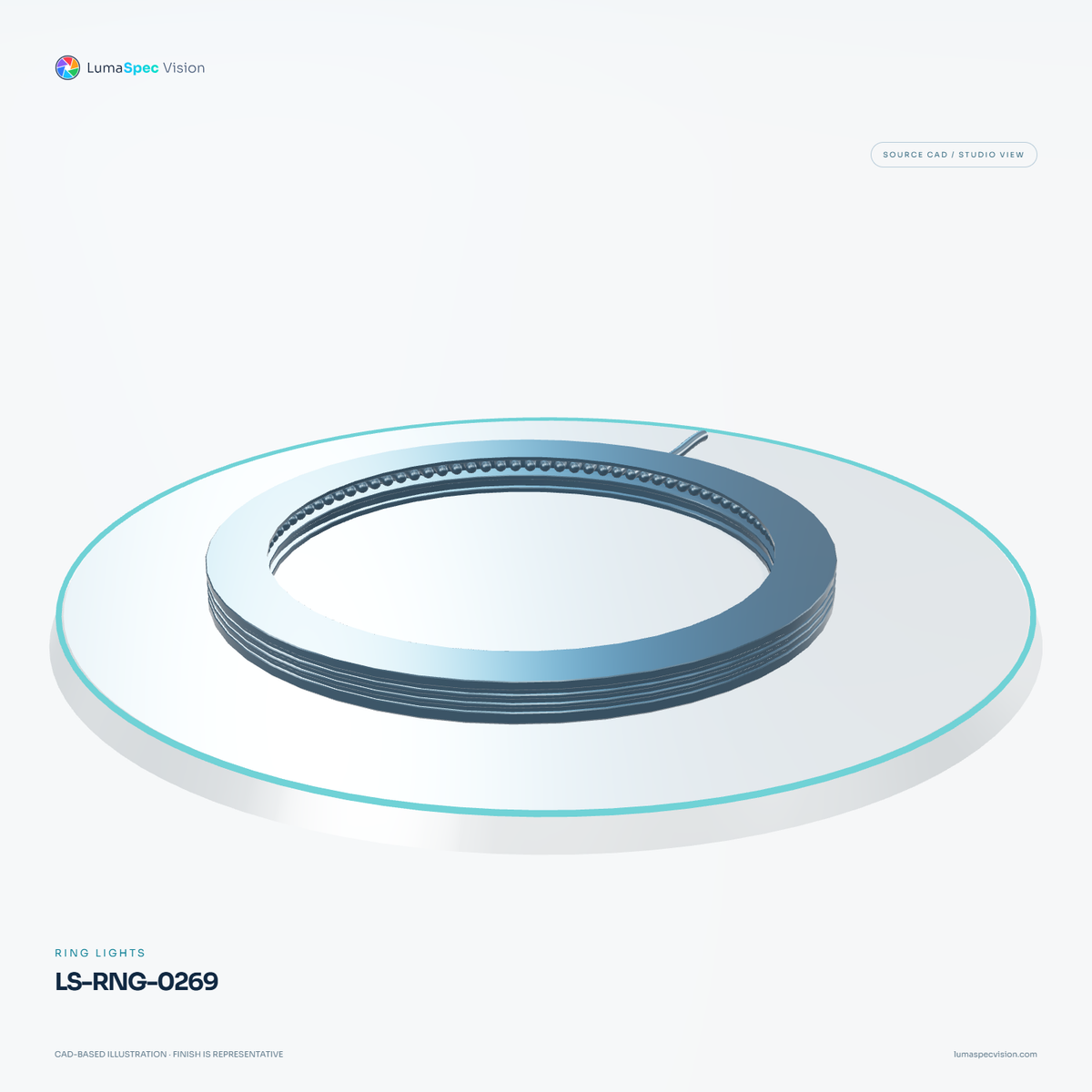

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- OD x ID x H (mm)
- 146x118x9.8
- Voltage (V)
- 24
- LED rows
- 1
- Angle (°)
- 0
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
