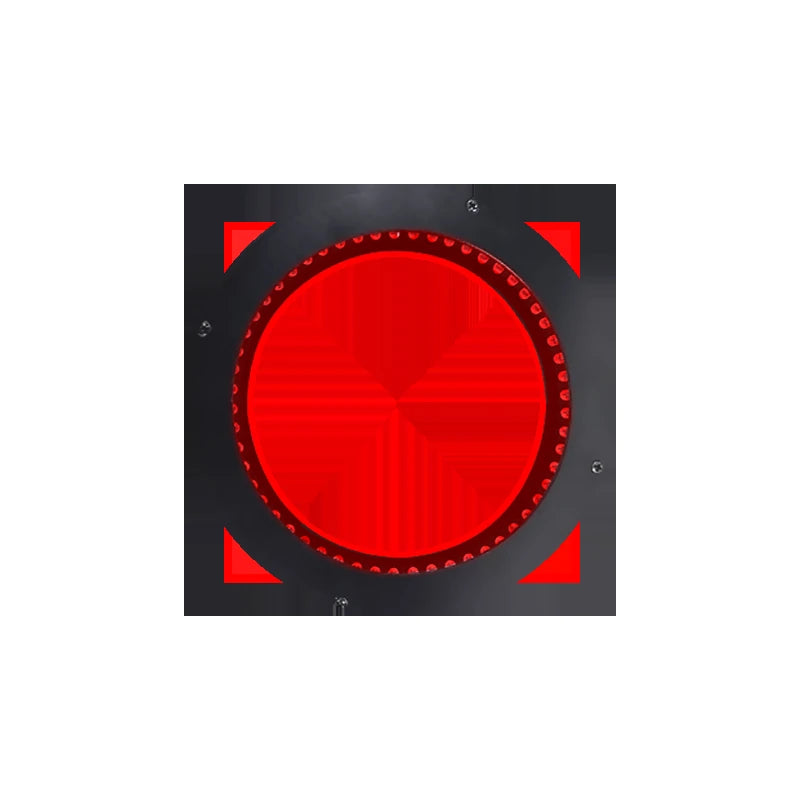

Ring light (LS-RNG-S49)
- 52 models
- from $99.00
- Series LS-RNG-S49
The Ring light (LS-RNG-S49) is a range of 52 ring lights from LumaSpec Vision, from $99.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Blue, White
- Size
- 50-100 mm, 100-200 mm, 200-400 mm
- Type
- Standard
- Angle
- Low angle (0-15°), 30°, 45°, 60°, 90°
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Light angles 0, 30, 45, 60 and 90 degrees
- SMD and DIP LED versions
- Inner and outer diameter, height, wavelength/colour temperature, illumination angle, mounting and wire length customization
- Three-colour RGB light source customization
- Outside diameter: 60 mm. Inside diameter: 30 mm.Thickness:11mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.
Typical uses
- PCB & plastic containers inspection
- Electronic components inspection & OCR on integrated circuits
- Microscope illumination, general appearance inspection
- LCD correction, font label detection
- Ceramic surface profile detection
- Fastener nut cross groove detection
All 52 models in the Ring light (LS-RNG-S49)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0074 | 30 | 22 | 60 | 2.2 | $99.00 | View |
| LS-RNG-0073 | 45 | 20 | 53 | 1.9 | $99.00 | View |
| LS-RNG-0075 | 45 | 25 | 60 | 2.2 | $109.00 | View |
| LS-RNG-0076 | 60 | 25 | 60 | 2.2 | $109.00 | View |
| LS-RNG-0077 | 0 | 30 | 60 | 1.2 | $119.00 | View |
| LS-RNG-0078 | 90 | 30 | 60 | 2.2 | $119.00 | View |
| LS-RNG-0079 | 0 | 35 | 70 | 1.2 | $129.00 | View |
| LS-RNG-0080 | 30 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0081 | 45 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0082 | 60 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0089 | 60 | 40 | 90 | 5.0 | $139.00 | View |
| LS-RNG-0083 | 90 | 40 | 70 | 2.8 | $139.00 | View |
| LS-RNG-0084 | 90 | 40 | 80 | 4.4 | $139.00 | View |
| LS-RNG-0090 | 90 | 40 | 90 | 6.6 | $139.00 | View |
| LS-RNG-0094 | 90 | 40 | 100 | 8.4 | $139.00 | View |
| LS-RNG-0085 | 0 | 45 | 80 | 1.6 | $149.00 | View |
| LS-RNG-0086 | 30 | 45 | 80 | 3.1 | $149.00 | View |
| LS-RNG-0091 | 30 | 45 | 90 | 5.0 | $149.00 | View |
| LS-RNG-0087 | 45 | 45 | 80 | 3.4 | $149.00 | View |
| LS-RNG-0092 | 45 | 45 | 90 | 5.3 | $149.00 | View |
| LS-RNG-0088 | 60 | 45 | 80 | 3.1 | $149.00 | View |
| LS-RNG-0095 | 60 | 50 | 100 | 5.6 | $159.00 | View |
| LS-RNG-0099 | 90 | 50 | 120 | 10.6 | $159.00 | View |
| LS-RNG-0093 | 0 | 55 | 90 | 1.9 | $169.00 | View |
| LS-RNG-0096 | 30 | 55 | 100 | 5.9 | $169.00 | View |
| LS-RNG-0097 | 45 | 55 | 100 | 5.9 | $169.00 | View |
| LS-RNG-0100 | 60 | 60 | 120 | 9.0 | $179.00 | View |
| LS-RNG-0098 | 0 | 65 | 100 | 1.9 | $189.00 | View |
| LS-RNG-0101 | 45 | 70 | 120 | 9.7 | $209.00 | View |
| LS-RNG-0102 | 30 | 75 | 120 | 7.2 | $219.00 | View |
| LS-RNG-0103 | 0 | 85 | 120 | 2.5 | $239.00 | View |
| LS-RNG-0104 | 60 | 95 | 150 | 12.5 | $259.00 | View |
| LS-RNG-0105 | 90 | 95 | 150 | 12.2 | $259.00 | View |
| LS-RNG-0106 | 45 | 100 | 150 | 13.1 | $269.00 | View |
| LS-RNG-0107 | 30 | 105 | 150 | 10.0 | $279.00 | View |
| LS-RNG-0108 | 0 | 115 | 150 | 3.7 | $309.00 | View |
| LS-RNG-0109 | 60 | 125 | 180 | 15.6 | $329.00 | View |
| LS-RNG-0110 | 90 | 125 | 180 | 15.3 | $329.00 | View |
| LS-RNG-0111 | 30 | 130 | 180 | 15.9 | $339.00 | View |
| LS-RNG-0112 | 45 | 130 | 180 | 15.9 | $339.00 | View |
| LS-RNG-0113 | 0 | 145 | 180 | 4.7 | $369.00 | View |
| LS-RNG-0114 | 45 | 154 | 200 | 16.9 | $399.00 | View |
| LS-RNG-0118 | 60 | 154 | 208 | 17.5 | $399.00 | View |
| LS-RNG-0115 | 90 | 154 | 200 | 17.5 | $399.00 | View |
| LS-RNG-0116 | 30 | 158 | 200 | 18.8 | $409.00 | View |
| LS-RNG-0117 | 0 | 170 | 200 | 4.7 | $429.00 | View |
| LS-RNG-0119 | 60 | 202 | 250 | 22.5 | $499.00 | View |
| LS-RNG-0072 | $499.00 | View | ||||
| LS-RNG-0122 | 30 | 206 | 250 | 22.5 | $509.00 | View |
| LS-RNG-0120 | 45 | 204 | 250 | 22.5 | $509.00 | View |
| LS-RNG-0121 | 90 | 204 | 250 | 22.5 | $509.00 | View |
| LS-RNG-0123 | 0 | 220 | 250 | 6.3 | $529.00 | View |
