Ring lights

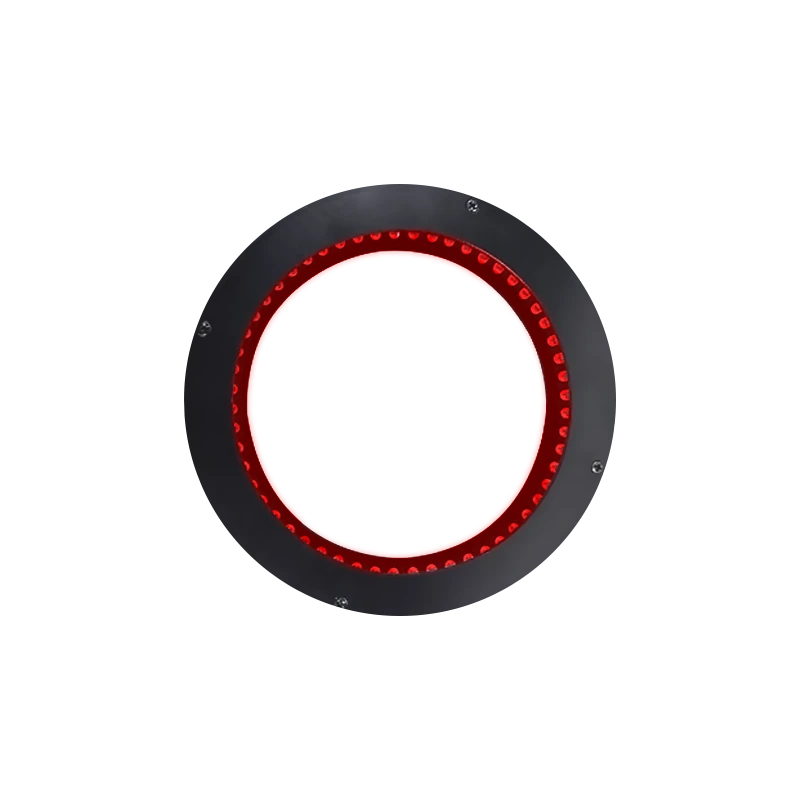

60 mm dia. ring light, 0° (LS-RNG-0077)

Model LS-RNG-0077

ColourRed, Blue, White
Voltage24 V
Angle0°
TypeStandard

$119.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring light for direct illumination; the light angle (between the light direction and the horizontal plane) is offered at 0, 30, 45, 60 and 90 degrees, in SMD or DIP LED versions.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0077
Category	0° ring light
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000V10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support
Angle (°)	0

Interfaces and I/O

Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

Uniformity diffuser	×
LED type	DIP
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power DIP red (W)	0.6
Power DIP blue/white (W)	1.2
Voltage (V)	24

Mechanical

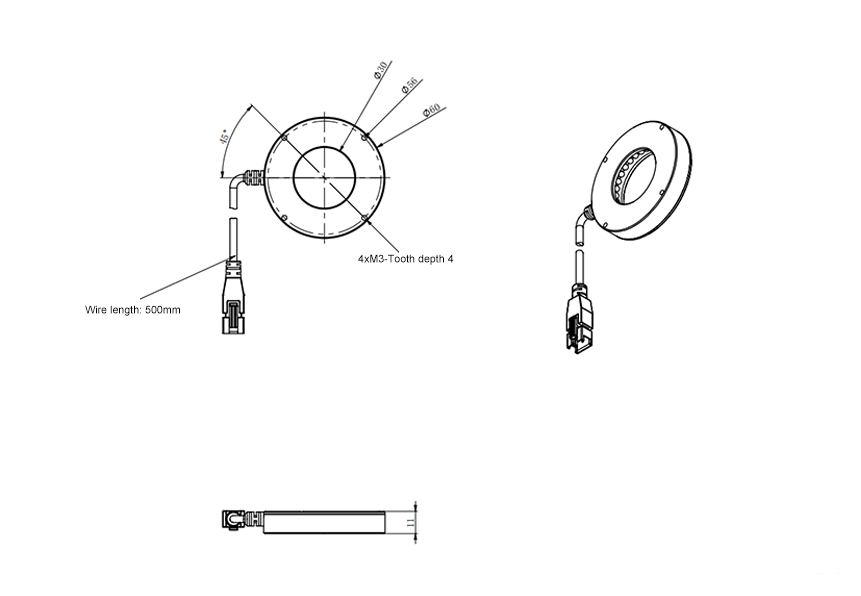

Wire length	500 mm (drawing)
Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Inner diameter (mm)	30
Outer diameter (mm)	60
Thickness (mm)	11
Shipping weight	0.20 kg

Downloads

Datasheet (PDF)LS-RNG-0077 · 1.1 MB

Features

Light angles 0, 30, 45, 60 and 90 degrees
SMD and DIP LED versions
Inner and outer diameter, height, wavelength/colour temperature, illumination angle, mounting and wire length customization
Three-colour RGB light source customization
Outside diameter: 60 mm. Inside diameter: 30 mm.Thickness:11mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for scenarios that require high-precision inspection, such as industrial quality inspection, robot tracking, etc.

Applications

PCB & plastic containers inspection
Electronic components inspection & OCR on integrated circuits
Microscope illumination, general appearance inspection
LCD correction, font label detection
Ceramic surface profile detection
Fastener nut cross groove detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
