Representative photo of this series
Ring lights
90 mm dia. ring light, 90° (LS-RNG-0090)
Model LS-RNG-0090
- ColourRed, Blue, White
- Voltage24 V
- Angle90°
- TypeStandard
$139.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring light for direct illumination; the light angle (between the light direction and the horizontal plane) is offered at 0, 30, 45, 60 and 90 degrees, in SMD or DIP LED versions.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0090 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Angle (°) | 90 |
Light
| LED SMD | yes |
|---|---|
| LED DIP | yes |
| Wavelength red | 620-639 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Power SMD red (W) | 5.3 |
| Power SMD blue/white (W) | 8.2 |
| Power DIP red (W) | 4.1 |
| Power DIP blue/white (W) | 6.6 |
| Voltage (V) | 24 |
Mechanical

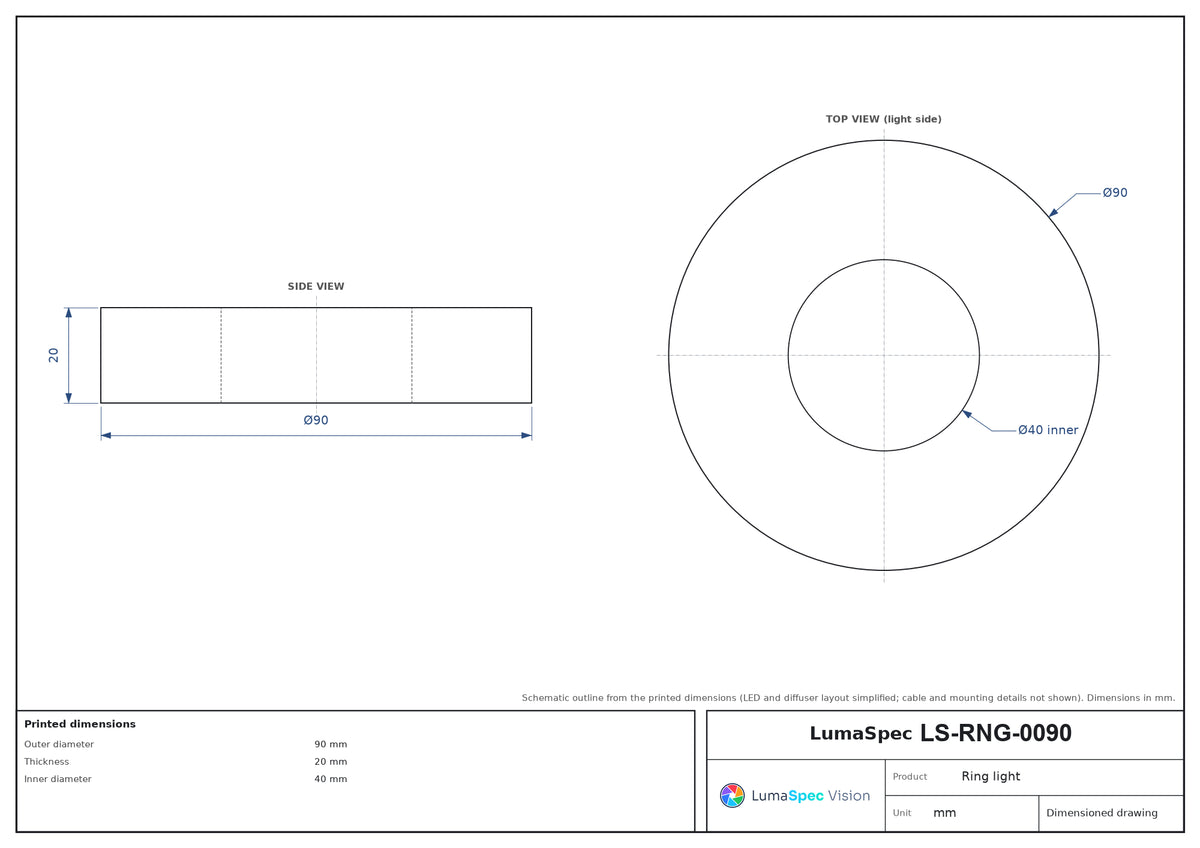

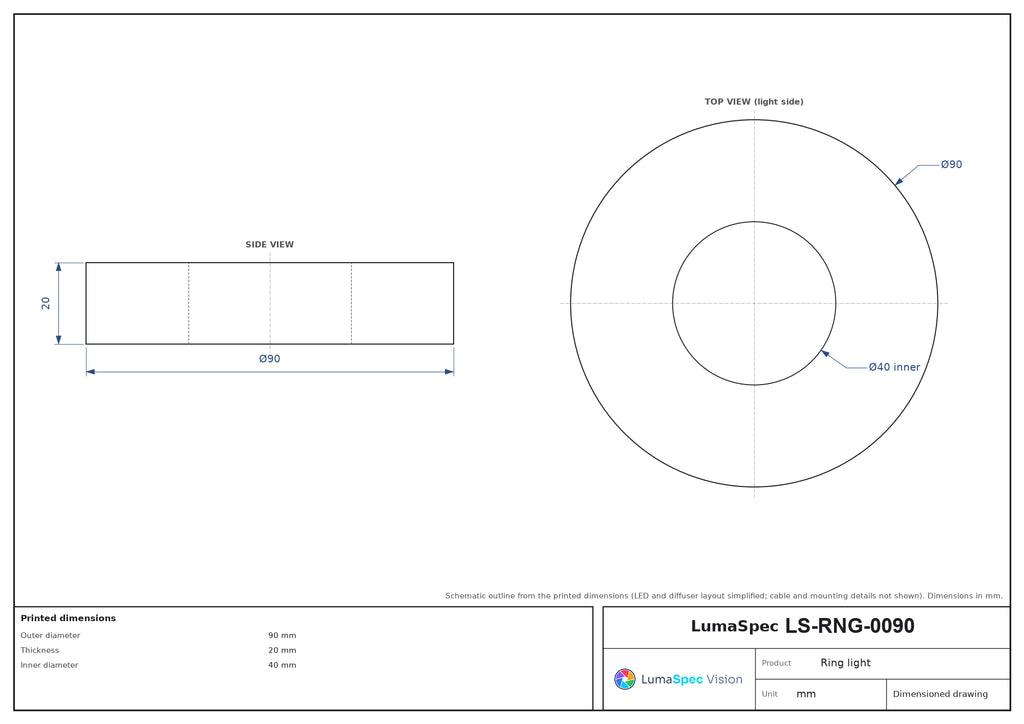

| Wire length | 500 mm (drawing) |
|---|---|
| Inner diameter (mm) | 40 |
| Outer diameter (mm) | 90 |
| Thickness (mm) | 20 |
| Shipping weight | 0.20 kg |
