Ring light (LS-RNG-S49)
  • Ring light (LS-RNG-S49)

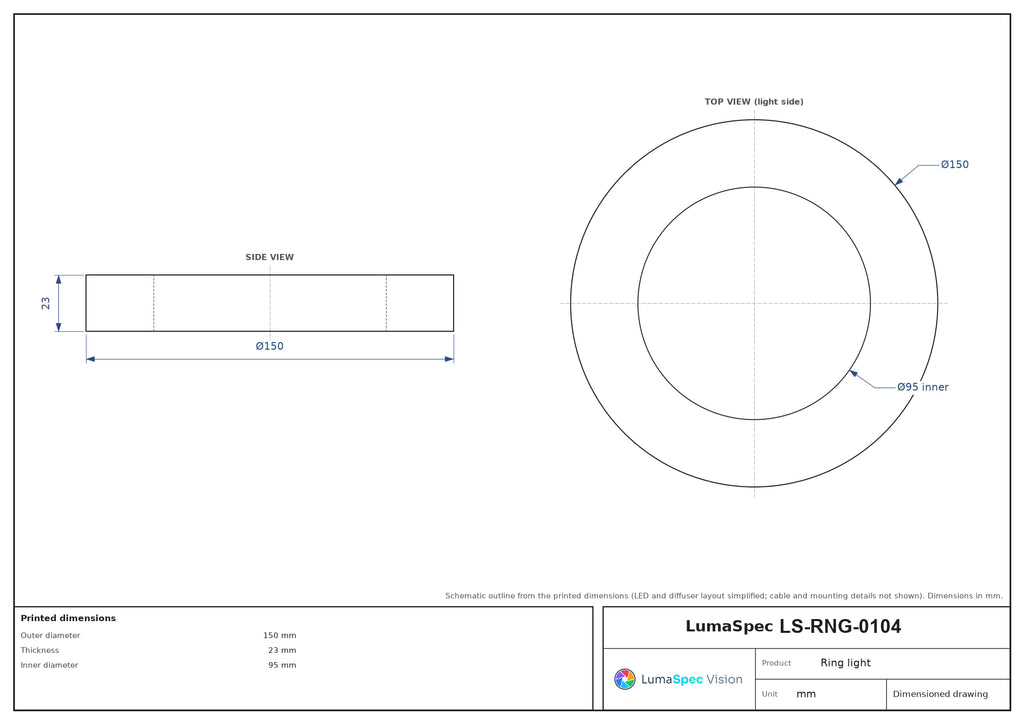

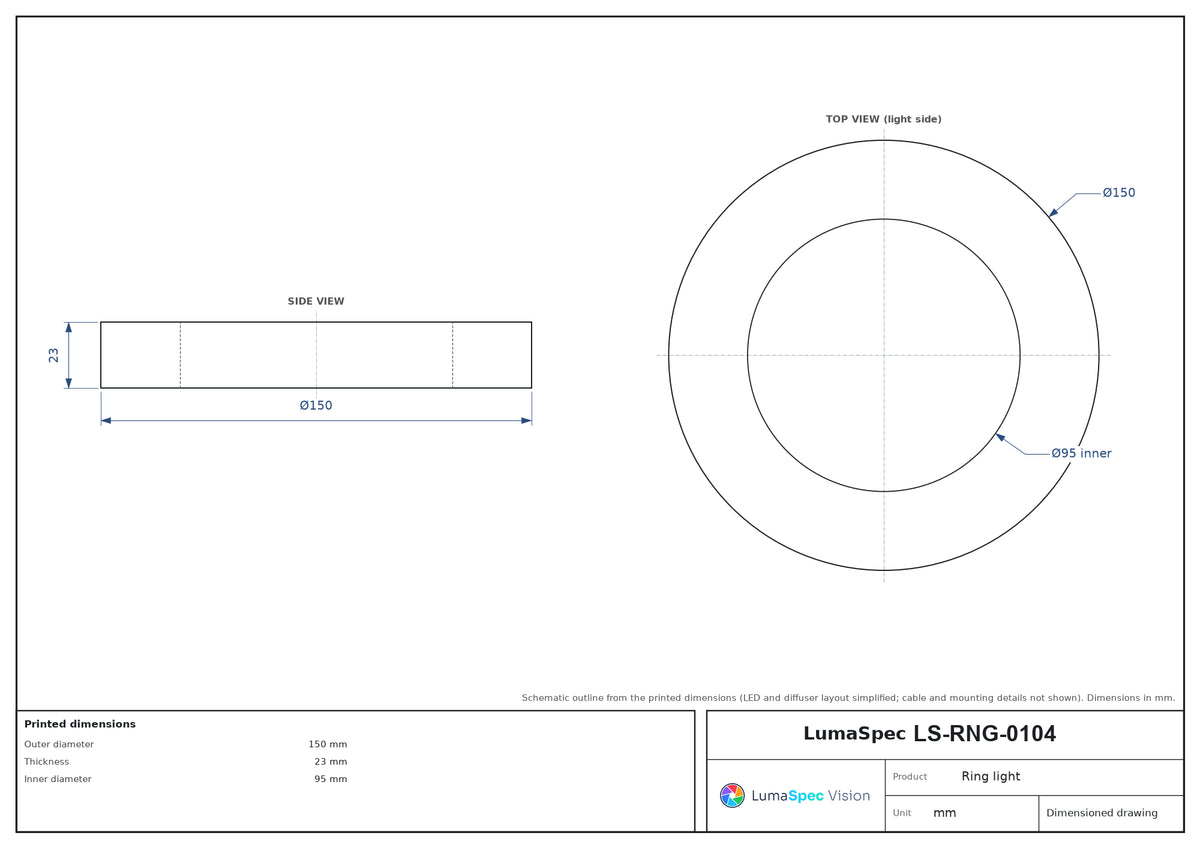

  • LS-RNG-0104 dimensions (mm)

Representative photo of this series

Ring lights

150 mm dia. ring light, 60° (LS-RNG-0104)

Model LS-RNG-0104

  • ColourRed, Blue, White
  • Voltage24 V
  • Angle60°
  • TypeStandard
$259.00

Ships in 2-3 weeks

0.35 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 mm dia. ring light, 60° (LS-RNG-0104)LS-RNG-0104

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring light for direct illumination; the light angle (between the light direction and the horizontal plane) is offered at 0, 30, 45, 60 and 90 degrees, in SMD or DIP LED versions.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0104
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Angle (°)60

Light

LED SMDyes
LED DIPyes
Wavelength red620-639 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Power SMD red (W)13.0
Power SMD blue/white (W)18.0
Power DIP red (W)8.1
Power DIP blue/white (W)12.5
Voltage (V)24

Mechanical

Wire length500 mm (drawing)
Inner diameter (mm)95
Outer diameter (mm)150
Thickness (mm)23
Shipping weight0.35 kg
