Ring lights

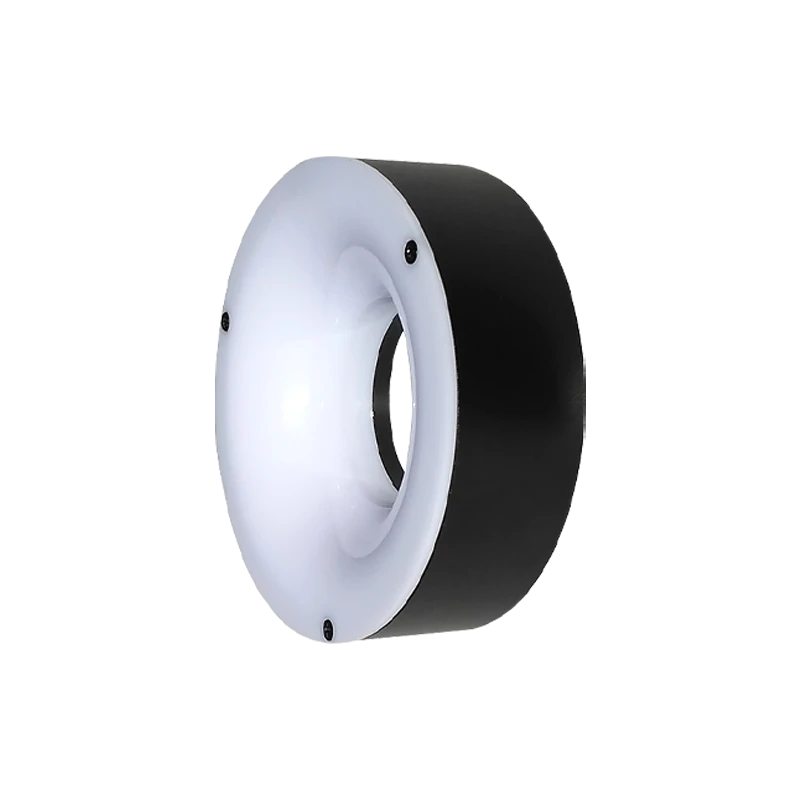

Shadowless ring light (LS-RNG-S86)
- 4 models
- from $129.00
- Series LS-RNG-S86
The Shadowless ring light (LS-RNG-S86) is a range of 4 ring lights from LumaSpec Vision, from $129.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 50-100 mm, 100-200 mm
- Type
- Diffused
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Uniformity diffuser
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, illumination angle, mounting and input wire length customization
- Outside diameter: 80 mm. Inside diameter: 36 mm.Thickness:26mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span: 50000 hours for red light and 30000 hours for white light.
- Suitable for specular surface detection, edge detection and providing shadowless illumination, etc.
Typical uses
- High-speed pipelined surface inspection of electronic components
- Dirt detection on the inner wall surface of cylindrical objects
- Beverage bottle cap surface dirt detection
- Bearing rust detection
- Plastic parts character detection
All 4 models in the Shadowless ring light (LS-RNG-S86)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0784 | 36 | 80 | 3.8 | 26 | $129.00 | View |
| LS-RNG-0785 | 35 | 120 | 5 | 31 | $129.00 | View |
| LS-RNG-0786 | 71 | 120 | 8.5 | 24 | $209.00 | View |
| LS-RNG-0787 | 100 | 145 | 12 | 25 | $269.00 | View |
