Ring lights

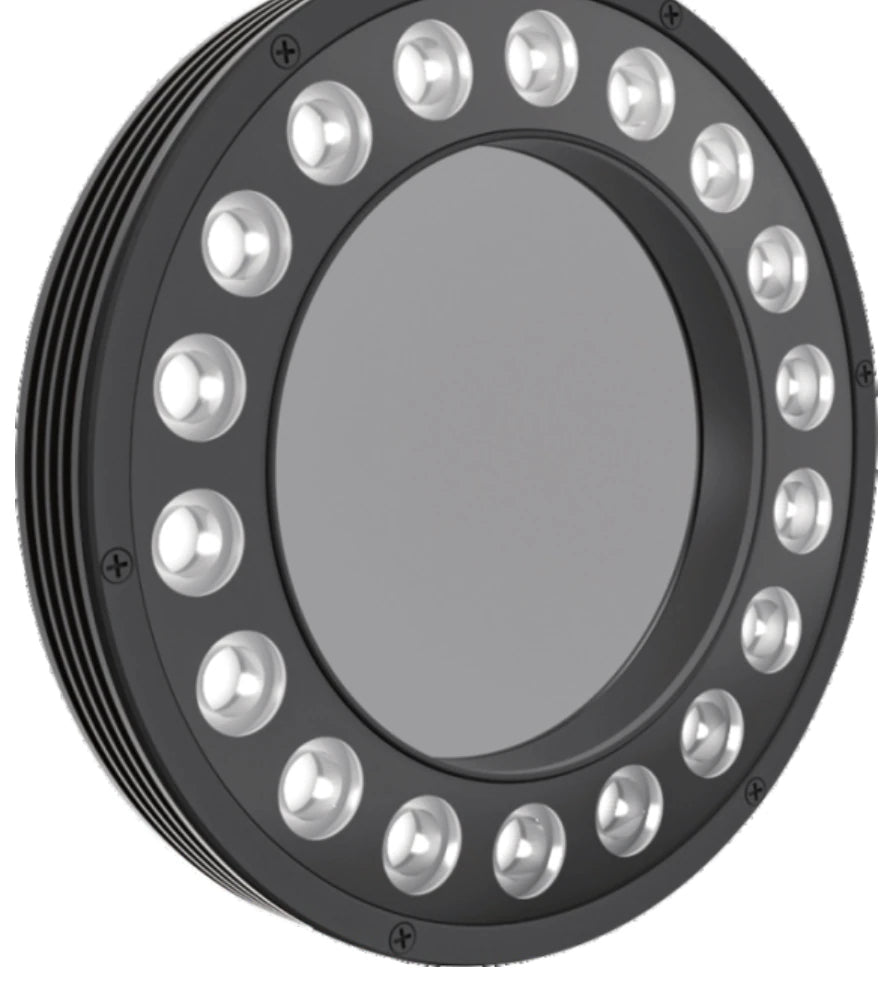

Polarised light, LS-RNG-S67 series
- 13 models
- from $179.00
- Series LS-RNG-S67
The Polarised light, LS-RNG-S67 series is a range of 13 ring lights from LumaSpec Vision, from $179.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 45 x 32 mm, 48 x 28 mm, 50 mm, 70 mm, 90 mm, 90 x 22 mm, 100 x 100 mm, 115 mm, 135 x 32 mm, 140 mm, 175 x 33 mm, 315 x 32 mm
- Colour
- Red, Blue, White
- Type
- Polarized
- Voltage
- 24 V
Features
- Eliminates the light spots produced by the beads
- Eliminates interference caused by reflections on the objects
- Good heat dissipation using special thermal conductivity materials
- Various shapes, customisable to customer requirements
- Polariser and analyser integrated, convenient to observe and use
- Eliminates interference from reflections on the object
- Special thermally conductive material, good heat dissipation
- Focused (condensing) design raises brightness
Typical uses
- Product label location and character inspection
- Film classification and size testing of lithium batteries
- Bar code character reading
- Capacitor character and surface dirt inspection
- Screen printed character recognition for mobile phone cases, PADs, chargers
- Product label position and character inspection
All 13 models in the Polarised light, LS-RNG-S67 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0585 | 50 mm | 5 | Od50 | OD60 x ID13 x H18 | $179.00 | View |
| LS-RNG-0577 | 45 x 32 mm | 3.6 | 45 x 32 | L57 x W38 x H27 | $179.00 | View |
| LS-RNG-0583 | 48 x 28 mm | 1.7 | 48 x 28 | L58 x W30 x H21 | $179.00 | View |
| LS-RNG-0586 | 70 mm | 8.4 | OD70 | OD80 x ID38 x H18 | $229.00 | View |
| LS-RNG-0587 | 90 mm | 8.4 | dia. 90 | OD100 x ID49 x H19.5 | $309.00 | View |
| LS-RNG-0581 | 90 x 22 mm | 1.7 | 90 x 22 | L102 x W28 x H27 | $309.00 | View |
| LS-RNG-0588 | 115 mm | 8.4/13 | dia. 115 | OD125 x ID78 x H18 | $329.00 | View |
| LS-RNG-0584 | 100 x 100 mm | 11 | 100 x 100 | L135 x W115 x H22.7 | $349.00 | View |
| LS-RNG-0578 | 135 x 32 mm | 10.8 | 135 x 32 | L147 x W38 x H27 | $379.00 | View |
| LS-RNG-0589 | 140 mm | 13 | OD140 | OD150 x ID96.4 x H23.3 | $389.00 | View |
| LS-RNG-0582 | 175 x 33 mm | 17 | 175 x 33 | L205 x W40 x H38 | $499.00 | View |
| LS-RNG-0579 | 175 x 33 mm | 17 | 175 x 33 | L205 x W40 x H38 | $569.00 | View |
| LS-RNG-0580 | 315 x 32 mm | 25.2 | 315 x 32 | L327 x W38 x H27 | $739.00 | View |
