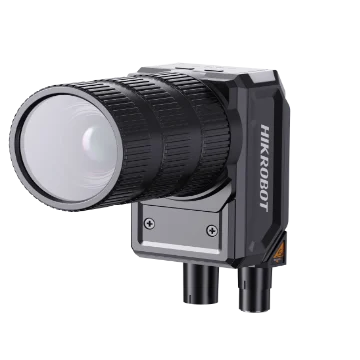

Hikrobot MV-ID5120RM-00C-NNN 12 MP resolution, C-mount lens, No lens, No light, Clear lens cover
Model MV-ID5120RM-00C-NNN
Hikrobot MV-ID5120RM-00C-NNN 12 MP resolution, C-mount lens, No lens, No light, Clear lens cover. 12 MP high-performance rolling-shutter sensor for fast image acquisition and excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Datasheet (PDF, Chinese) - MV-ID5120RM-00C-NNNUser manual (PDF, Chinese) - MV-ID5120RM-00C-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5120RM-00C-NNN
Features
- 12 MP high-performance rolling-shutter sensor for fast image acquisition and excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Print-quality grading to verify barcode print quality
- Supports TCP, Serial, FTP, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, FINS and other communication protocols
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID5120RM-00C-NNN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 30 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | Rolling shutter, Mono, 1/1.57”, 2 μm ×2 μm |
| Resolution | 4096 × 3024 |
| Exposure time | 33 μs ~ 1 s |
| Gain | 0 dB ~ 34 dB |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, ModBus RTU, Fins, UDP |
| Digital I/O | 12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output; Device trigger and one-key tuning via body button supported |
| Power supply | 24±10% VDC |
| Power consumption | Avg. power: 6 W @ 24 VDC; Max. power: 12 W @ 24 VDC |
| Focal length | - |
| Field of view | - |
| Lens mount | C-Mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | C-mount |
| Shell material | Metal |
| Weight | Approx. 307 g |
| Dimension | Straight: 112.3 mm × 54 mm × 110 mm; Right-angle: 88.7 mm × 54 mm × 132.4 mm |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.53 kg |
