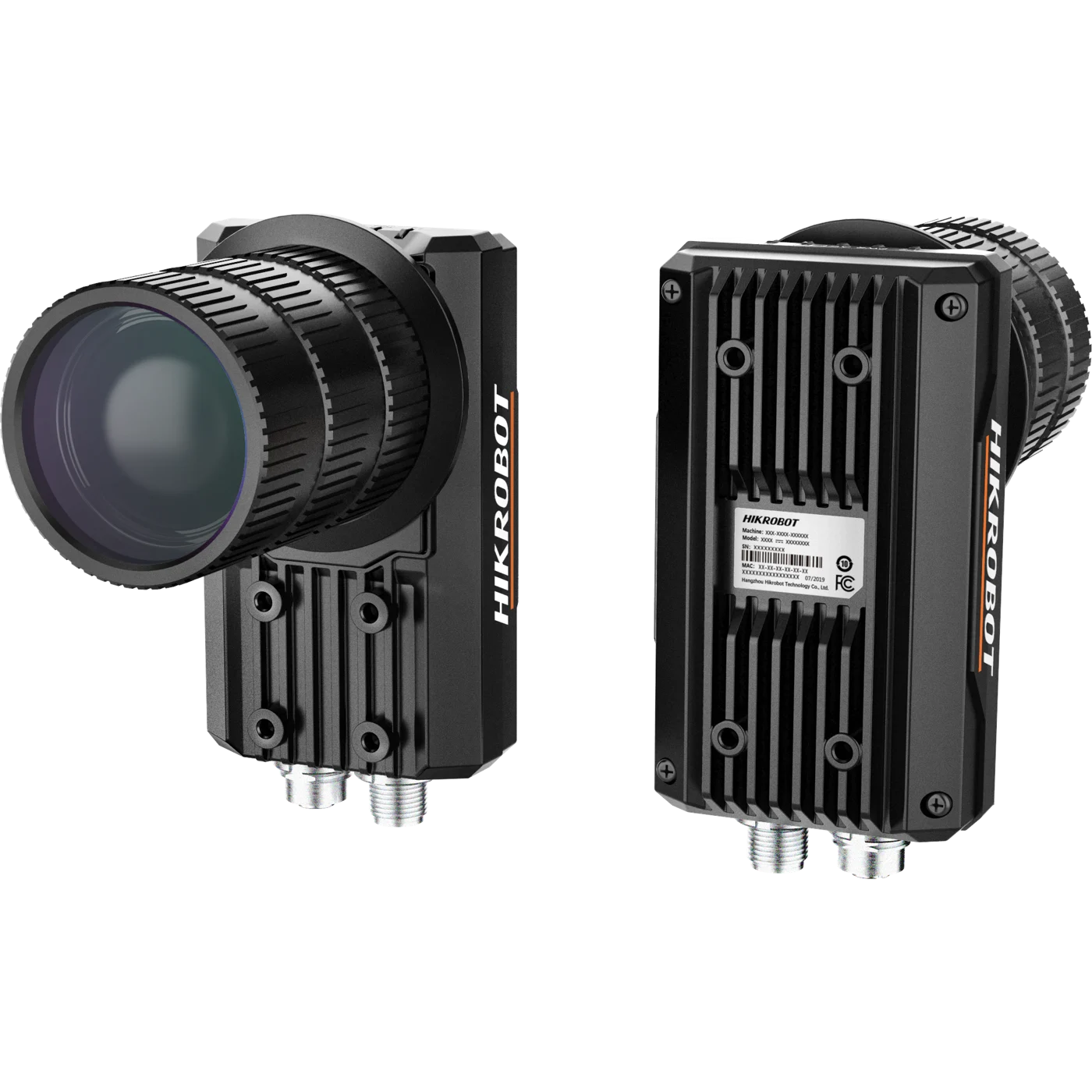

Hikrobot MV-ID5200PM-00C-NNN(V2.0) 20MP Allfunction Industrial Code Reader
Model MV-ID5200PM-00C-NNN(V2.0)
Hikrobot MV-ID5200PM-00C-NNN(V2.0) 20MP Allfunction Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts CMOS global shutter sensor to provide high quality images.
Datasheet (PDF) - MV-ID5200PM-00C-NNN(V2.0)User manual (PDF) - MV-ID5200PM-00C-NNN(V2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-ID5200PM-00C-NNN(V2.0)
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Supports chessboard ROI and reading 200 two-dimensional codes at the same time.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
- Ingress protection rating 67.
Specifications
| Model | MV-ID5200PM-00C-NNN(V2.0) |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11; 2-dimensional codes: QR Code, Data Matrix; Stack codes: PDF 417 |
| Max. frame rate | 20 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 3968 |
| Exposure time | 16 μs to 0.5 sec |
| Gain | 0 dB to 2.5 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP |
| Data interface | Gigabit Ethernet |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 12 W@24 VDC |
| Lens mount | C-mount |
| Light source | Not included |
| Lens cap | Transparent lens cap |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the ID5000 Series Industrial Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID5050XM-08M-RBN | 5 MP, 1/1.45", 8 mm lens | Price on request | 5 in stock | View |
| MV-ID5050XM-12M-RBN | 5 MP, 1/1.45", 12 mm lens | Price on request | 3 in stock | View |
| MV-ID5050XM-16M-RBN | 5 MP, 1/1.45", 16 mm lens | Price on request | 3 in stock | View |
| MV-ID5050XM-25M-RBN | 5 MP, 1/1.45", 25 mm lens | Price on request | 3 in stock | View |
| MV-ID5050XM-08L-RBN | 5 MP, 1/1.45", 8 mm lens | Price on request | 5 in stock | View |
| MV-ID5050XM-12L-RBN | 5 MP, 1/1.45", 12 mm lens | Price on request | 4 in stock | View |
| MV-ID5050XM-16L-RBN | 5 MP, 1/1.45", 16 mm lens | Price on request | 3 in stock | View |
| MV-ID5050XM-00C-NNN | 5 MP, 1/1.45" | Price on request | 3 in stock | View |
| MV-ID5060M-08S-WBN | 6.3 MP, 1/1.8", 8 mm lens | Price on request | 5 in stock | View |
| MV-ID5060M-12S-WBN | 6.3 MP, 1/1.8", 12 mm lens | Price on request | 5 in stock | View |
| MV-ID5060M-16S-WBN | 6.3 MP, 1/1.8", 16 mm lens | Price on request | 2 in stock | View |
| MV-ID5060M-25S-WBN | 6.3 MP, 1/1.8", 25 mm lens | Price on request | 5 in stock | View |
| MV-ID5060M-00C-NNN | 6.3 MP, 1/1.8" | Price on request | 5 in stock | View |
| MV-ID5120RM-08M-RBN | 12.4 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID5120RM-12M-RBN | 12.4 MP, 12 mm lens | Price on request | 2 in stock | View |
| MV-ID5120RM-16M-RBN | 12.4 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID5120RM-25M-RBN | 12.4 MP, 25 mm lens | Price on request | 5 in stock | View |
| MV-ID5120RM-08L-RBN | 12.4 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID5120RM-12L-RBN | 12.4 MP, 12 mm lens | Price on request | 5 in stock | View |
| MV-ID5120RM-16L-RBN | 12.4 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID5200M | 19.8 MP | Price on request | 4 in stock | View |
| MV-ID5200PM | 20.3 MP, 1.1" | Price on request | 3 in stock | View |
| MV-ID5250PM-00C-NNN | 26.2 MP, 1.1" | Price on request | 3 in stock | View |
| MV-ID5120M-00C-NNN | 12.6 MP, 1" | Price on request | 3 in stock | View |
See all 30 models in the ID5000 Series Industrial Code Reader series
