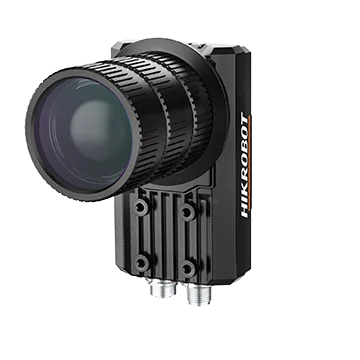

Hikrobot MV-ID5200M 20MP Allfunction Industrial Code Reader
Model MV-ID5200M
Hikrobot MV-ID5200M 20MP Allfunction Industrial Code Reader. Adopts 20 MP rolling shutter sensor with high performance to provide high-quality images. Adopts built-in deep learning algorithm to read codes with good robustness.
Features
- Adopts 20 MP rolling shutter sensor with high performance to provide high-quality images.
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Supports multiple communication protocols, including UDP, TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Modbus, Modbus RTU, and Fins.
- Supports drawing ROI via chessboard, and supports 1D codes, 2D codes, and stacked codes.
- Ingress protection rating 67.
Specifications
| Model | MV-ID5200M |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, MAXCODE; 2D stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 20 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, rolling shutter, mono, 1", 2.4 μm × 2.4 μm |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs to 500 ms |
| Gain | 0 dB to 40 dB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, Melsec/SLMP, Fins, ModBus, UDP, Fins, ModBus RTU |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Avg.: 9 W @ 24 VDC; Max.: 12 W @ 24 VDC |
| Lens mount | C-mount |
| Lens cap | Transparent lens cap |
| Light source | No built-in light source |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Shell material | Metal |
| Dimension | 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)1 |
| Shock resistance | Device only, 30 g/11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)1 |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
