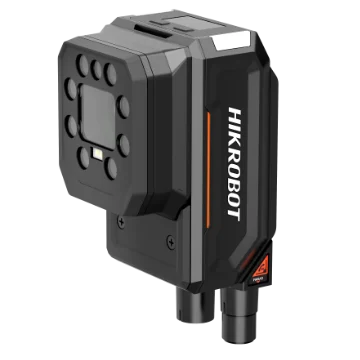

Hikrobot MV-ID5120RM-08L-RBN Industrial Code Reader
Model MV-ID5120RM-08L-RBN
Hikrobot MV-ID5120RM-08L-RBN Industrial Code Reader. Adopts a 12 MP high-performance rolling shutter sensor for high-speed image acquisition and high image quality. Adopts built-in deep learning algorithm to read codes with good robustness.
Datasheet (PDF) - MV-ID5120RM-08L-RBNUser manual (PDF) - MV-ID5120RM-08L-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5120RM-08L-RBN
Features
- Adopts a 12 MP high-performance rolling shutter sensor for high-speed image acquisition and high image quality.
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Supports code score and quality evaluation for code printing.
- Supports communication protocols including TCP, Serial, FTP, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, and FINS.
- Supports ingress protection IP67.
Specifications
| Model | MV-ID5120RM-08L-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin; Stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 10 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | Rolling shutter, mono, 1/1.57", 2 μm × 2 μm |
| Resolution | 4096 × 3024 |
| Exposure time | 33 μs to 1 sec |
| Gain | 0 dB to 34 dB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, ModBus RTU, UDP, Fins |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.; Supports device triggering via pressing button on device and smart tune. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 15.5 W @ 24 VDC (light source enabled); Max.: 36 W @ 24 VDC (light source enabled) |
| Focal length | 8 mm |
| Lens mount | D14-mount, liquid lens focus supported |
| Lens cap | Half-polarized lens cap by default. Transparent and fully-polarized caps are optional. |
| Light source | Red light by default. White/blue/IR light is optional. |
| Indicator | Multi-directional device body indicator |
| Dimension | Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4"); Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2") |
| Shell material | Metal |
| Weight | Approx. 405 g (0.9 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.67 kg |
