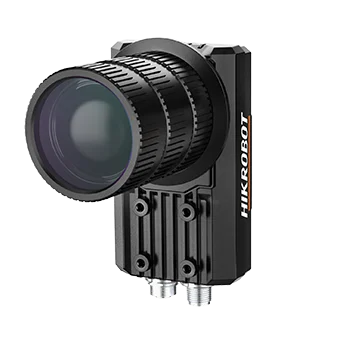

Hikrobot MV-ID5250PM-00C-NNN Industrial Code Reader
Model MV-ID5250PM-00C-NNN
Hikrobot MV-ID5250PM-00C-NNN Industrial Code Reader. Adopts CMOS global shutter sensor to provide high quality images. Adopts built-in deep learning algorithm to read codes with good robustness.
Datasheet (PDF) - MV-ID5250PM-00C-NNNUser manual (PDF) - MV-ID5250PM-00C-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5250PM-00C-NNN
Features
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Supports multiple communication protocols, including TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, and Fins.
- Supports chessboard ROI and reading 200 two-dimensional codes at the same time.
- Supports ingress protection IP67.
Specifications
| Model | MV-ID5250PM-00C-NNN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial25, PharmaCode; 2-dimensional codes: QR Code, Data Matrix, MicroQR, AZTEC, HANXIN; Stack codes: PDF 417 |
| Max. frame rate | 15 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Exposure time | 16 μs to 0.5 sec |
| Gain | 1 dB to 2.5 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 12 W @ 24 VDC |
| Lens mount | C-mount |
| Light source | Not included |
| Lens cap | Transparent lens cap |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
