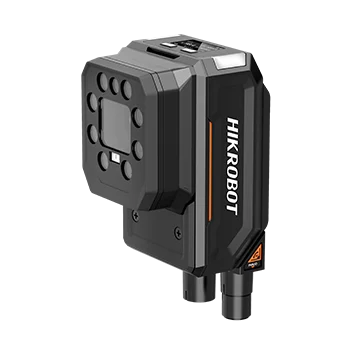

Hikrobot MV-ID5050XM-16M-RBN Industrial Code Reader
Model MV-ID5050XM-16M-RBN
Hikrobot MV-ID5050XM-16M-RBN Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.
Datasheet (PDF) - MV-ID5050XM-16M-RBNUser manual (PDF) - MV-ID5050XM-16M-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5050XM-16M-RBN
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.
- Adopts multiple indicators to show device status from different sides.
- Rotatable cable design for flexible mounting.
- Adopts controllable light source design to provide diversified light according to workpiece material.
- Adopts I/O interfaces for input and output signals.
- Supports high-precision sensors to get the installation position.
- Supports broad selection of accessories, such as multi-color light source or wafer light source, for improving code-reading ability and scene adaptability.
- Supports HDR function to provide high-contrast image.
- Provides multiple lens mounts, such as C-mount lens, mechanical focus lens, or liquid focus lens.
Specifications
| Model | MV-ID5050XM-16M-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin; 2D stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 92 fps |
| Max. reading speed | 120 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Exposure time | 38 μs to 3 ms |
| Gain | 0 dB to 37 dB |
| Mono/color | Mono |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.; Supports device triggering via pressing on touchscreen. |
| Power supply | 24 ± 10% VDC |
| Power consumption | Avg.: 11 W @ 24 VDC (light source enabled); Max.: 36 W @ 24 VDC (light source enabled) |
| Focal length | 16 mm |
| Lens mount | M12-mount, mechanical focus supported |
| Lens cap | Half polarization lens cap by default. Transparent and full polarization caps are optional. |
| Light source | Red light by default. White/blue/IR light is optional. |
| Indicator | Multi-directional device body indicator |
| Shell material | Metal |
| Dimension | Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4"); Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2") |
| Weight | Approx. 405 g (0.9 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.67 kg |
