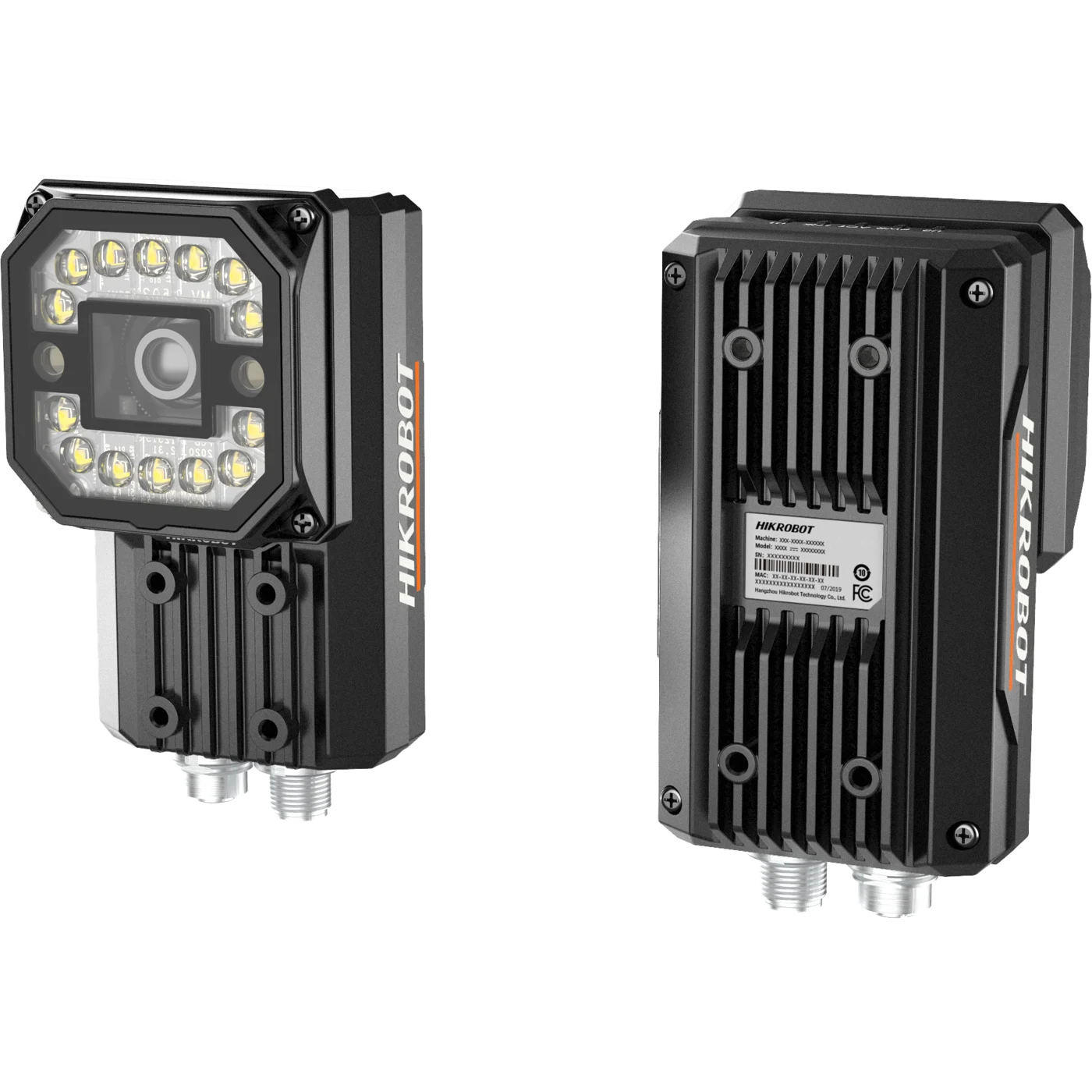

Hikrobot MV-ID5050M-16S-WBN ID5000 Series 4.2MP, 16mm, white lighting industrial Code Reader
Model MV-ID5050M-16S-WBN
Hikrobot MV-ID5050M-16S-WBN ID5000 Series 4.2MP, 16mm, white lighting industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts CMOS global shutter sensor to provide high quality images.
Datasheet (PDF) - MV-ID5050M-16S-WBNUser manual (PDF) - MV-ID5050M-16S-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5050M-16S-WBN
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Supports code score and quality evaluation for code printing quality.
- Adopts controllable light source design providing diversified light.
- Ingress protection rating 67.
Specifications
| Model | MV-ID5050M-16S-WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25; 2-dimensional codes: QR Code, Data Matrix; Stack codes: PDF 417 |
| Max. frame rate | 40 fps |
| Max. reading speed | 90 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1/1.7" |
| Resolution | 2560 × 2048 |
| Exposure time | 60 μs to 1 sec |
| Gain | 0 dB to 18 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power supply | 24 VDC |
| Max. power consumption | 60 W @ 24 VDC (light source enabled) |
| Focal length | 16 mm |
| Lens mount | M12-mount, mechanical autofocus supported. |
| Lens cap | Half polarization lens cap by default. Transparent and full polarization lens cap are optional. |
| Light source | White light by default. Red/blue/IR light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5") |
| Weight | Approx. 450 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.73 kg |
