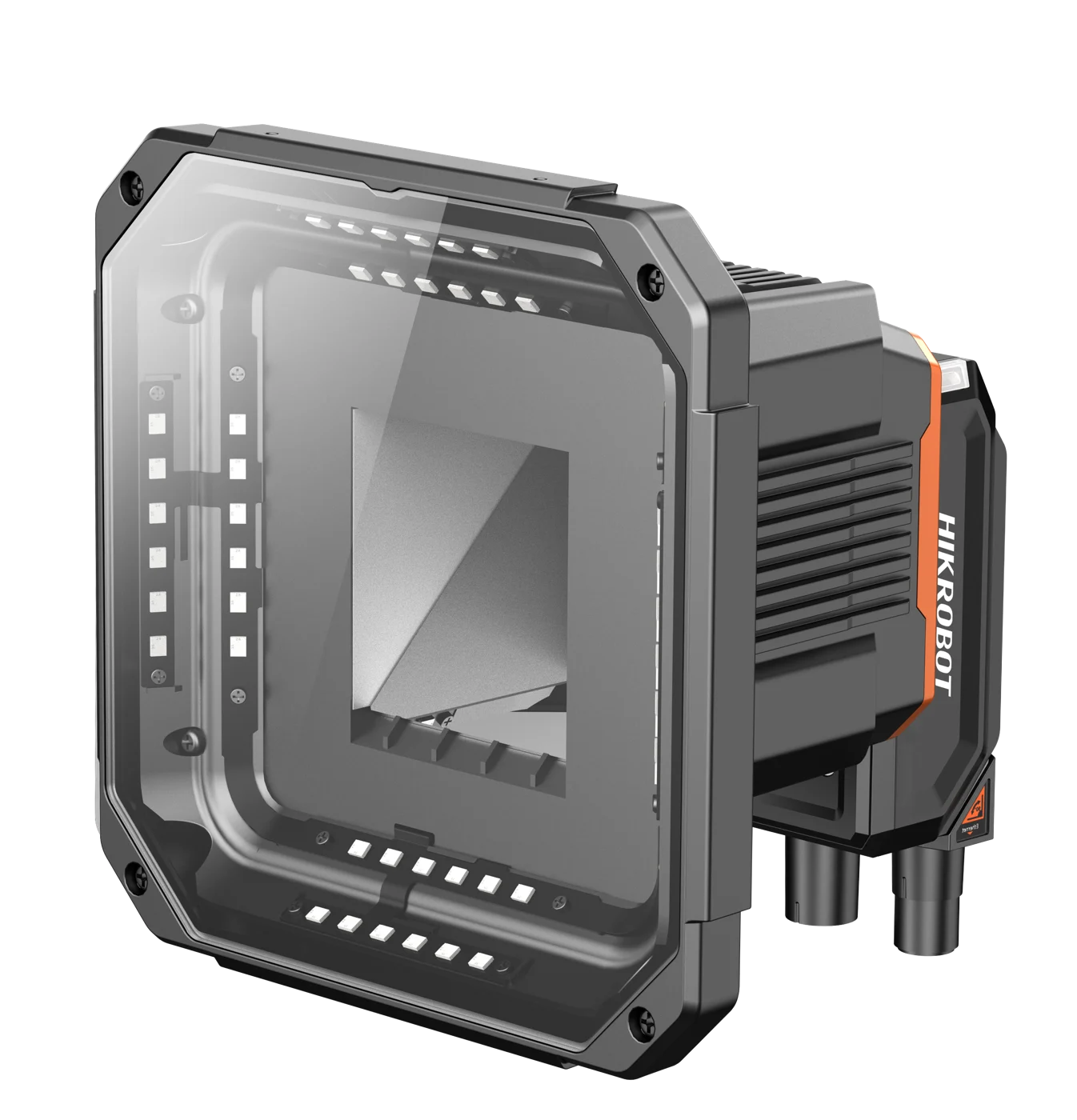

Hikrobot MV-ID5050XM-16M-BVS ID5050mini, 5 MP resolution, 16 mm focal length model for code grading
Model MV-ID5050XM-16M-BVS
Hikrobot MV-ID5050XM-16M-BVS ID5050mini, 5 MP resolution, 16 mm focal length model for code grading. Works across many scenarios: professional lighting design accurately grades barcodes and 2D codes on different surface materials Standardized quality verification: automatically generates barcode grading reports based on ISO standard parameters
Datasheet (PDF, Chinese) - MV-ID5050XM-16M-BVSUser manual (PDF, Chinese) - MV-ID5050XM-16M-BVSCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5050XM-16M-BVS
Features
- Works across many scenarios: professional lighting design accurately grades barcodes and 2D codes on different surface materials
- Standardized quality verification: automatically generates barcode grading reports based on ISO standard parameters
- Intelligent quality control: grading reports and read statistics give customers a reference to reduce production interruptions caused by poor code quality
- Grades multiple symbologies, including Code128, Code39, ITF25, EAN8, EAN13, UPCA, ITF14, DM and QR
Specifications
| Model | MV-ID5050XM-16M-BVS |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code128, Code39, ITF25, EAN8, EAN13, UPCA, ITF14; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 120 codes/s |
| Working distance | 40 mm |
| Field of view (range) | 65 × 55 mm |
| Min. X dimension | 1D:0.13mm(5mil); 2D:0.18mm(7mil) |
| Sensor type | Global shutter, Mono, 1/1.45", 3.45 μm × 3.45 μm |
| Resolution | 2432 × 2048 |
| Exposure time | 6 μs ~ 3 ms |
| Gain | 0 dB ~ 37 dB |
| Light source type | 660 nm, 30°, 1 quadrant, 2 quadrant, 4 quadrant; 660 nm, 45°, 4 quadrant; 660 nm, 90° |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, ModBus RTU, Fins, UDP |
| Digital I/O | 12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output; Device can be triggered via the body display and buttons |
| Power supply | 24 ± 10% VDC |
| Power consumption | Average power: 7.5 W@24VDC; Max. power: 36 W@24VDC |
| Focal length | 16 mm |
| Lens mount | M12-Mount, Mechanical focus adjustable |
| Lens cap | High-transmittance flat glass |
| Indicator | Multi-angle body indicators |
| Shell material | Aluminum alloy |
| Dimension | Straight: 159.5 mm × 149.3 mm × 136.6 mm; Right-angle: 149.3 mm × 149.3 mm × 159 mm |
| Weight | 968 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z: 2 hours per direction (IEC 60068-2-6: 2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.46 kg |
