Fixed code readers

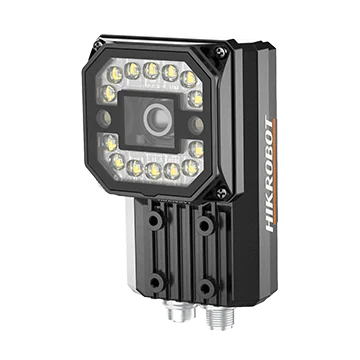

Hikrobot MV-ID50Y-25W 5 MP global-shutter industrial code reader
Model MV-ID50Y-25W
Hikrobot MV-ID50Y-25W 5 MP global-shutter industrial code reader. High-performance 5 MP sensor: wide field of view and excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Features
- High-performance 5 MP sensor: wide field of view and excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- With a mechanical-focus lens, focusing is automatic for easy setup
- Print-quality grading to verify 2D code print quality
- Integrated multi-zone controllable lighting module for flexible applications
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID50Y-25W |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 40 fps |
| Max. reading speed | 90 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1/1.7” |
| Resolution | 2560 × 2048 |
| Exposure time | 60 μs ~ 1 sec |
| Gain | 0 dB ~ 18 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O, Includes 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1 RS-232 output |
| Power supply | 24 VDC |
| Max. power consumption | 60 W @ 24 VDC (built-in light on) |
| Focal length | 25 mm |
| Lens mount | M12-mount, mechanical focusing |
| Lens cap | Semi-polarizing lens cover, Clear and full-polarizing lens covers optional |
| Light source | White light source by default. Red, blue, or IR light source is optional. |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, User indicator U1/U2 |
| Dimension | 112.5 mm × 65.5 mm × 63.3 mm |
| Weight | Approx. 450 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.73 kg |
