Fixed code readers

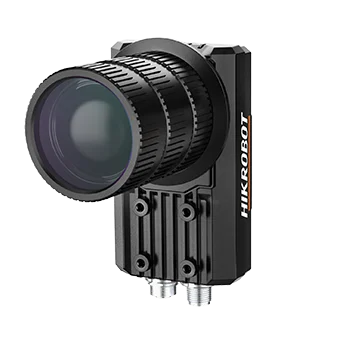

Hikrobot MV-ID5200M-00C-NNN 20 MP resolution, C-mount, no lens, no light, Clear lens cover, Full-featured AI smart industrial code reader
Model MV-ID5200M-00C-NNN
Hikrobot MV-ID5200M-00C-NNN 20 MP resolution, C-mount, no lens, no light, Clear lens cover, Full-featured AI smart industrial code reader. High-performance 20 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Datasheet (PDF, Chinese) - MV-ID5200M-00C-NNNUser manual (PDF, Chinese) - MV-ID5200M-00C-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5200M-00C-NNN
Features
- High-performance 20 MP rolling-shutter sensor for excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Supports UDP, TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins, Modbus and Modbus RTU communication protocols
- Checkerboard ROI; reads up to 202 codes per frame, including 1D, 2D and stacked codes
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID5200M-00C-NNN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, MAXCODE; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 20 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | Rolling shutter, Mono, 1”, 2.4 μm × 2.4 μm |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs ~ 500 ms |
| Gain | 0 dB ~ 40 dB |
| Data interface | Fast Ethernet(1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU |
| Digital I/O | Mono |
| Power supply | 12 VDC ~ 24 VDC |
| Power consumption | Gigabit Ethernet |
| Lens mount | C-Mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | C-mount |
| Shell material | Metal |
| Dimension | 109.5 mm × 64.4 mm × 109 mm |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Shock resistance | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID5000 Series Industrial Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID5120RM-08M-RBN | 12.4 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID5120RM-12M-RBN | 12.4 MP, 12 mm lens | Price on request | 2 in stock | View |
| MV-ID5120RM-16M-RBN | 12.4 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID5120RM-25M-RBN | 12.4 MP, 25 mm lens | Price on request | 5 in stock | View |
| MV-ID5120RM-08L-RBN | 12.4 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID5120RM-12L-RBN | 12.4 MP, 12 mm lens | Price on request | 5 in stock | View |
| MV-ID5120RM-16L-RBN | 12.4 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID5200M | 19.8 MP | Price on request | 4 in stock | View |
| MV-ID5200PM | 20.3 MP, 1.1" | Price on request | 3 in stock | View |
| MV-ID5200PM-00C-NNN(V2.0) | 20.3 MP, 1.1" | Price on request | 4 in stock | View |
| MV-ID5250PM-00C-NNN | 26.2 MP, 1.1" | Price on request | 3 in stock | View |
| MV-ID5060M-00C-WBN | 6.3 MP | Price on request | 4 in stock | View |
| MV-ID5060M-08S-RBN | 6.3 MP, 8 mm lens | Price on request | 4 in stock | View |
| MV-ID5060M-12S-RBN | 6.3 MP, 12 mm lens | Price on request | 3 in stock | View |
| MV-ID5060M-16S-RBN | 6.3 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID5060M-25S-RBN | 6.3 MP, 25 mm lens | Price on request | 2 in stock | View |
| MV-ID5200PM-00C-NNN | 19.7 MP | Price on request | 5 in stock | View |
| MV-ID50Y-8W | 5.2 MP, 8 mm lens | Price on request | 2 in stock | View |
| MV-ID50Y-12W | 5.2 MP, 12 mm lens | Price on request | 2 in stock | View |
| MV-ID50Y-16W | 5.2 MP, 16 mm lens | Price on request | 2 in stock | View |
| MV-ID50Y-25W | 5.2 MP, 25 mm lens | Price on request | 2 in stock | View |
| MV-ID5120XM-00C-NNN | 12.6 MP | Price on request | 4 in stock | View |
| MV-ID5050XM-08M-XBN | 5 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID5120RM-00C-NNN | 12.4 MP | Price on request | 5 in stock | View |
See all 96 models in the ID5000 Series Industrial Code Reader series
