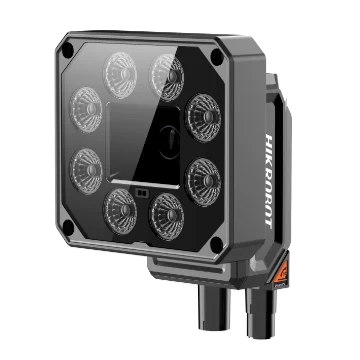

Hikrobot MV-ID5050XM-08M-XBN ID5050mini, 5 MP resolution, 8 mm focal length autofocus model, Multi-color light, clear-window model
Model MV-ID5050XM-08M-XBN
Hikrobot MV-ID5050XM-08M-XBN ID5050mini, 5 MP resolution, 8 mm focal length autofocus model, Multi-color light, clear-window model. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations
Datasheet (PDF, Chinese) - MV-ID5050XM-08M-XBNUser manual (PDF, Chinese) - MV-ID5050XM-08M-XBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID5050XM-08M-XBN
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations
- Status indicators visible from multiple sides show code-reading status at a glance
- Rotatable cable exit and compact body for flexible installation in tight spaces
- Multi-zone light control automatically switches to the best illumination for the workpiece material
- Rich I/O interface for multiple input and output signals
- Multiple high-precision sensors make it easy to replicate or restore the mounting position
- Extensive accessories; some models support add-on strobe lights, multi-color lights, wafer lights and more to solve industry pain points
- HDR function for higher image contrast
- Multiple lens interface options: mechanical focus, liquid-lens focus or C-mount lens for different applications
Specifications
| Model | MV-ID5050XM-08M-XBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ; ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode (single/dual track); Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 120 codes/s |
| Sensor type | Global shutter, Mono, 1/1.45", 3.45 μm × 3.45 μm |
| Resolution | 2432 × 2048 |
| Exposure time | 6 μs ~ 3 ms |
| Gain | 0 dB ~ 37 dB |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS, ModBus RTU |
| Digital I/O | 12-pin M12 connector for power and I/O, Incl. 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output; Device can be triggered via the body display and buttons |
| Power supply | 24±10% VDC |
| Power consumption | Average power: 7.5 W@24 VDC (multi-color fill light on); Max. power: 36 W@24 VDC (multi-color fill light on) |
| Focal length | 8 mm |
| Lens mount | M12-mount, mechanical focusing |
| Lens cap | Fully polarized lens cover, Optional clear window |
| Light source | Red light, green light, blue light, white light (switching by software) |
| Indicator | Multi-angle body indicators |
| Shell material | Metal |
| Dimension | Straight: 129.9 mm × 98 mm × 70.8 mm; Right-angle: 106.4 mm × 98 mm × 93.1 mm |
| Weight | Approx. 658 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z: 2 hours per direction (IEC 60068-2-6: 2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.02 kg |
