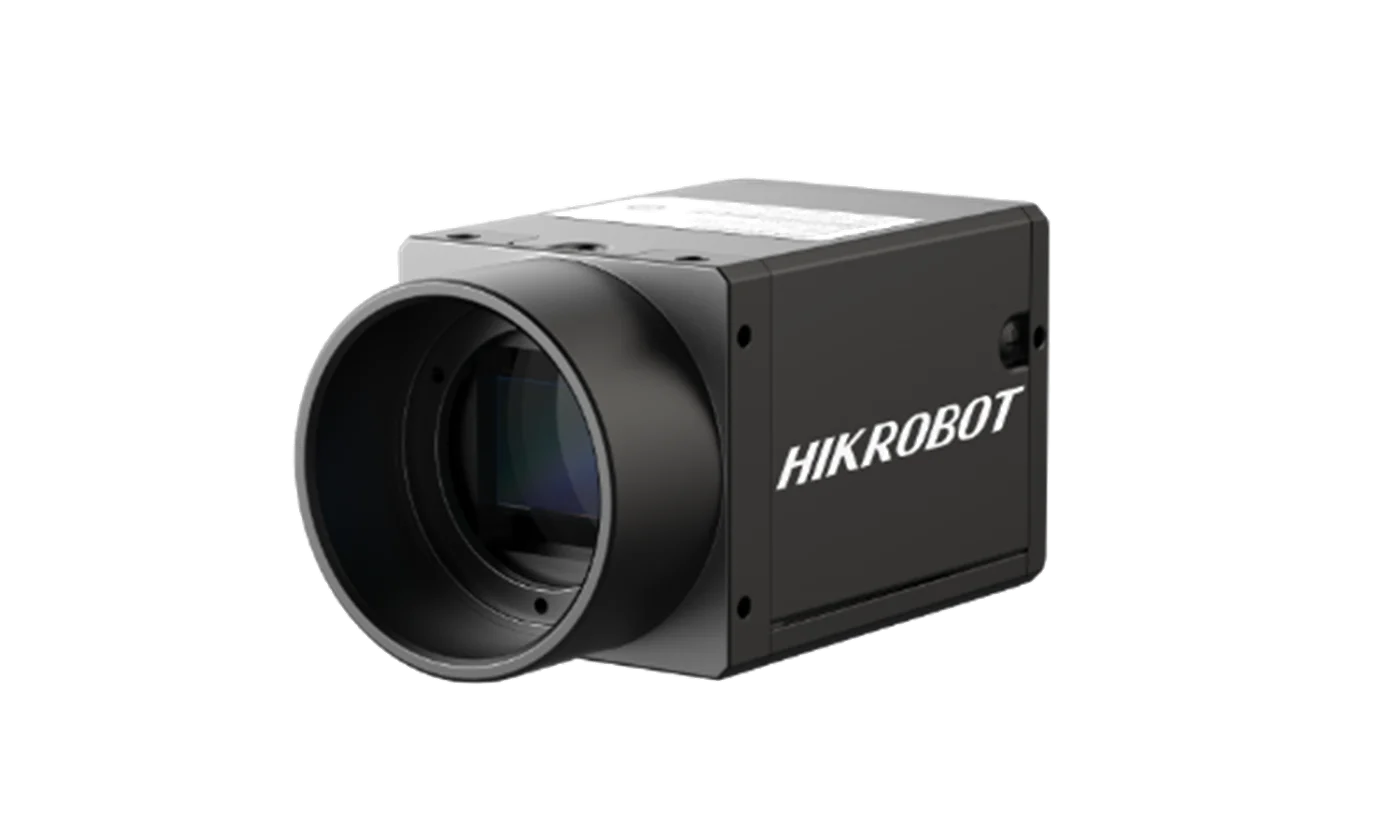

Hikrobot MV-CH250-90Y1M-NN 25MP Area Scan Camera, GMAX0505, 1-link CXP-12, C-mount, without fan, without heat sink, Mono
Model MV-CH250-90Y1M-NN
Hikrobot MV-CH250-90Y1M-NN 25MP Area Scan Camera, GMAX0505, 1-link CXP-12, C-mount, without fan, without heat sink, Mono. Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. Supports Binning, reverse image, and ROI settings.
Features
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Supports Binning, reverse image, and ROI settings.
- Adopts CXP-12 interface to transmit data.
- Compatible with C-mount lenses to reduce costs.
- Compatible with CoaXPress Protocol, GenlCam Standard.
Specifications
| Model | MV-CH250-90Y1M-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 41.3 fps @ 5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 1.0 x to 5.0 x |
| Exposure time | UltraShort exposure mode: 3 μs to 8 μs; Standard exposure mode: 9 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoCXP |
| Power consumption | Typ. 3.9 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 74.5 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.20 kg |
