Area scan cameras

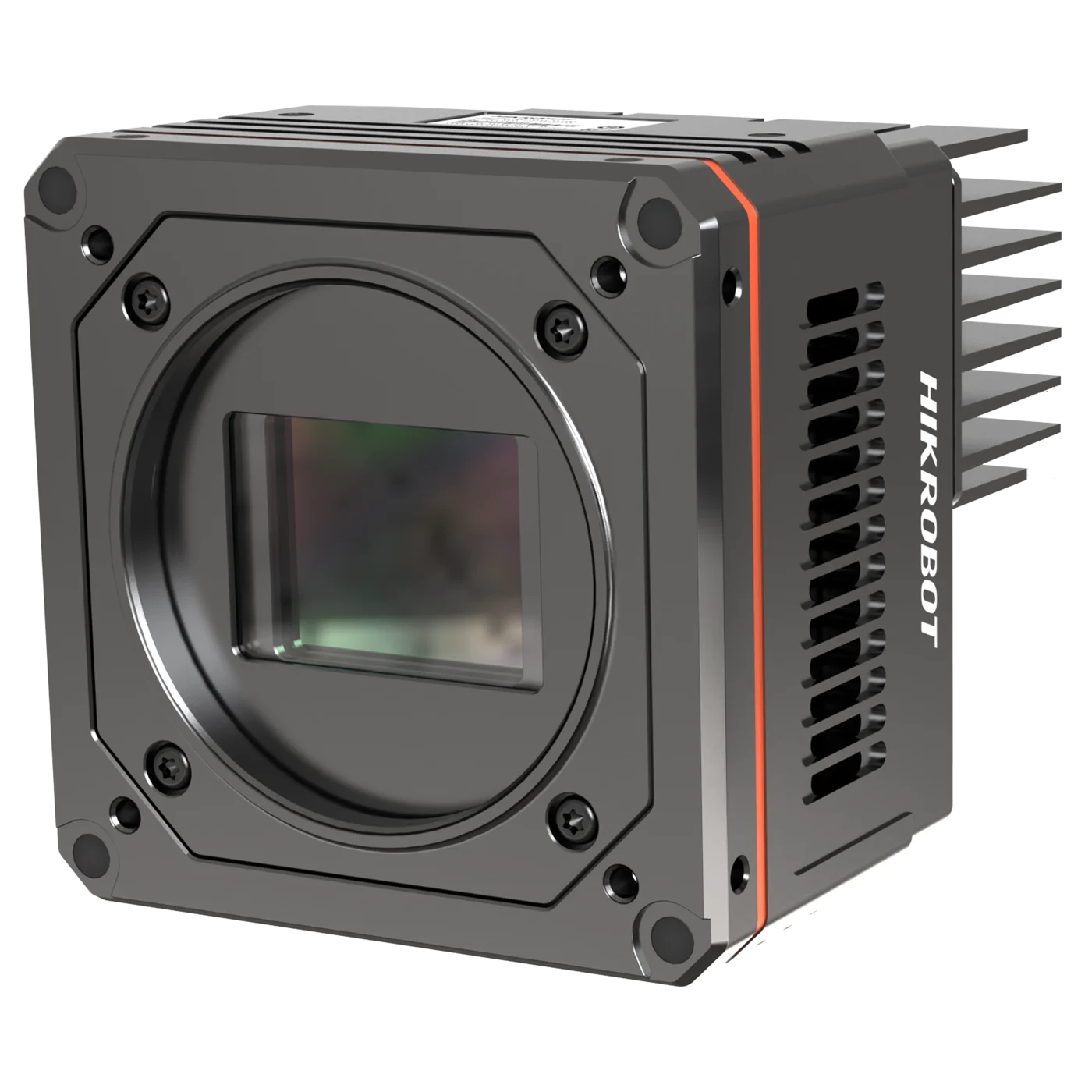

Hikrobot MV-CH250-20XM-M58S-NN 25MP Area Scan Camera, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
Model MV-CH250-20XM-M58S-NN
Hikrobot MV-CH250-20XM-M58S-NN 25MP Area Scan Camera, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless. Resolution of 5120 × 5120, and pixel size of 4.5 µm × 4.5 µm. Supports binning, reversing image, etc.
Features
- Resolution of 5120 × 5120, and pixel size of 4.5 µm × 4.5 µm.
- Supports binning, reversing image, etc.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard.
Specifications
| Model | MV-CH250-20XM-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Max. frame rate | 80 fps @ 5120 × 5120 |
| Dynamic range | 58 dB |
| SNR | 41 dB |
| Gain | 0 dB to 15 dB |
| Exposure time | 33 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | Typ. 10.8 W @ 24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | Approx. 730 g (1.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.12 kg |
