Area scan cameras

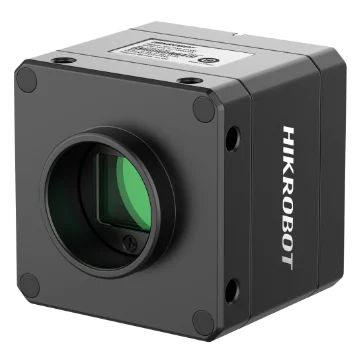

Hikrobot MV-CH120-90Y2C-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color
Model MV-CH120-90Y2C-C-NN
Hikrobot MV-CH120-90Y2C-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color. Resolution of 4096 × 3008, pixel size of 3.4 µm × 3.4 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Features
- Resolution of 4096 × 3008, pixel size of 3.4 µm × 3.4 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Adopts CXP-12 interface to transmit data.
- Supports Off, Once, and Continuous exposure modes.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CH120-90Y2C-C-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3412 |
| Pixel size | 3.4 μm × 3.4 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3008 |
| Max. frame rate | 149 fps @ 4096 × 3008 Bayer GB 8 |
| Dynamic range | 59.7 dB |
| SNR | 39.1 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 6 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interfaces |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, CXP-0 supports PoCXP |
| Power consumption | Typ. 6.1 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8") |
| Weight | Approx. 207 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.39 kg |
