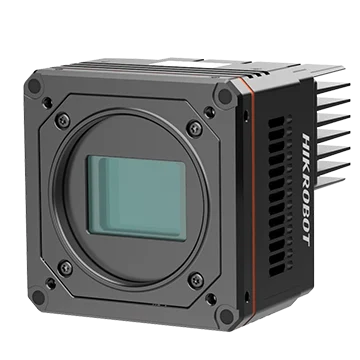

Hikrobot MV-CH210-90YC-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Color
Model MV-CH210-90YC-M58S-NN
Hikrobot MV-CH210-90YC-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Color. Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm. Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
Datasheet (PDF) - MV-CH210-90YC-M58S-NNUser manual (PDF) - MV-CH210-90YC-M58S-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH210-90YC-M58S-NN
Features
- Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Supports LSC sequencer polling function.
- Low power consumption without fans.
- Adopts CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard.
Specifications
| Model | MV-CH210-90YC-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel Gsprint4521 |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23.04 mm × 18.43 mm |
| Resolution | 5120 × 4096 |
| Max. frame rate | 222 fps @ 5120 × 4096 Bayer GB 8 |
| Dynamic range | 65 dB |
| SNR | 43 dB |
| Gain | 1.0 ×, 2.0 ×, 4.0 × |
| Exposure time | 4 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | With fan: Typ. 18.7 W @ 24 VDC; Without fan: Typ. 16.3 W @ 24 VDC |
| Lens mount | M58*0.75 |
| Dimension | With fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0"); Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | With fan: Approx. 790 g (1.7 lb.); Without fan: Approx. 650 g (1.4 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.21 kg |
