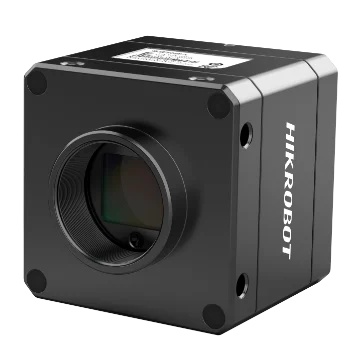

Hikrobot MV-CH250-90XC-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Color, C-mount, without fan

Name: Hikrobot MV-CH250-90XC-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Color, C-mount, without fan
Brand: Hikrobot
SKU: MV-CH250-90XC-C-NN

Model MV-CH250-90XC-C-NN

Hikrobot MV-CH250-90XC-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Color, C-mount, without fan. Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.

Datasheet (PDF) - MV-CH250-90XC-C-NN User manual (PDF) - MV-CH250-90XC-C-NN CAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-90XC-C-NN

Features

Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Adopts CXP-6 interface to transmit data.
Compatible with CoaXPress Protocol and GenlCam Standard.

Specifications

Model	MV-CH250-90XC-C-NN
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX0505
Pixel size	2.5 μm × 2.5 μm
Sensor size	1.1"
Resolution	5120 × 5120
Max. frame rate	41.5 fps @ 5120 × 5120 Bayer BG 8
Dynamic range	65 dB
SNR	41 dB
Gain	2.0 × to 5.0 ×
Exposure time	UltraShort exposure mode: 3 μs to 8 μs; Standard exposure mode: 10 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer BG 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	CoaXPress with DIN interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply	9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumption	Typ. 6.5 W @ 12 VDC
Lens mount	C-mount
Dimension	50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
Weight	Approx. 207 g (0.5 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.39 kg
