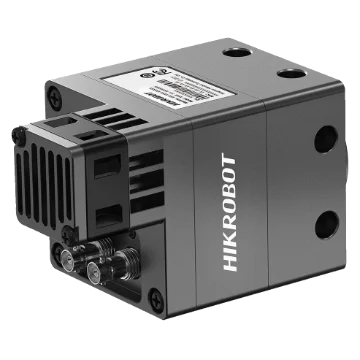

Hikrobot MV-CH250-90Y2M-C-NF 25MP Area Scan Camera, GMAX0505, 2 link CXP-12, Mono
Model MV-CH250-90Y2M-C-NF
Hikrobot MV-CH250-90Y2M-C-NF 25MP Area Scan Camera, GMAX0505, 2 link CXP-12, Mono. Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. Adopts global shutter CMOS sensor to provide high dynamic range and high-quality image.
Features
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range and high-quality image.
- Adopts CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CH250-90Y2M-C-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 85 fps @ 5120 × 5120 Mono 8 |
| Dynamic range | 60 dB |
| SNR | 35 dB |
| Gain | 2.5 × |
| Exposure time | UltraShort exposure mode: 4 μs to 12 μs; Standard exposure mode: 13 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, CXP-0 supports PoCXP |
| Power consumption | Typ. 7.1 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 40 mm × 40 mm × 66.5 mm (1.6" × 1.6" × 2.6") |
| Weight | Approx. 134.2 g (0.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.29 kg |
