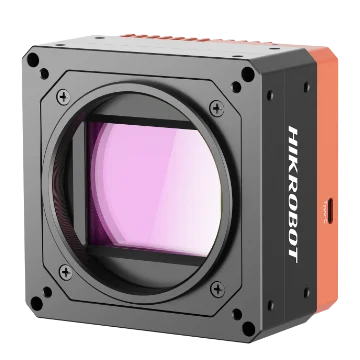

Hikrobot MV-CH1510-10XM-M72-TF V2 151MP Area Scan Camera, CoaXPress, IMX411, V2, mono, M72-mount, TEC with fan
Model MV-CH1510-10XM-M72-TF V2
Hikrobot MV-CH1510-10XM-M72-TF V2 151MP Area Scan Camera, CoaXPress, IMX411, V2, mono, M72-mount, TEC with fan. Supports highly-integrated hardware platform with low power consumption and higher cooling efficiency. Adopts a new design with a removable lens adapter ring.
Datasheet (PDF) - MV-CH1510-10XM-M72-TF V2User manual (PDF) - MV-CH1510-10XM-M72-TF V2CAD: 3D STEP + 2D DXF (ZIP) - MV-CH1510-10XM-M72-TF V2
Features
- Supports highly-integrated hardware platform with low power consumption and higher cooling efficiency.
- Adopts a new design with a removable lens adapter ring.
- Supports FFC, CCM, and SuperBayer functions.
- Supports TEC mode, and exposure time of up to 30 seconds.
- Supports 16-bit ADC output with high-precision sampling and high dynamic range.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, third-party software based on the protocol and standard.
Specifications
| Model | MV-CH1510-10XM-M72-TF V2 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX411 |
| Pixel size | 3.76 μm × 3.76 μm |
| Sensor size | 66.7 mm |
| Resolution | 14192 × 10640 |
| Max. frame rate | 6.2 fps @14192 × 10640 Mono 8 |
| Dynamic range | 78.8 dB |
| SNR | 46.4 dB |
| Gain | 0 dB to 40 dB |
| Exposure time | 15 μs to 30 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12/16 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not supported |
| Reverse image | Supports horizontal reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Camera with TEC non-cooling: Typ. 20.8 W @ 24 VDC; Camera with TEC cooling: Typ. 34.2 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1.2 kg (2.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above) |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.78 kg |
