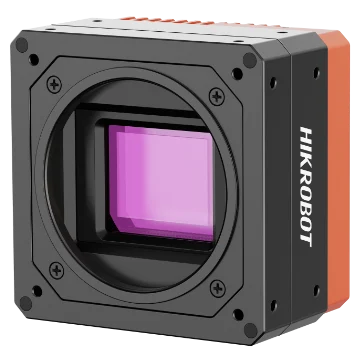

Hikrobot MV-CH1520-90YM-M72-TF 152MP Area Scan Camera, CoaXPress, GMAX32152, Mono, M72-mount, with TEC
Model MV-CH1520-90YM-M72-TF
Hikrobot MV-CH1520-90YM-M72-TF 152MP Area Scan Camera, CoaXPress, GMAX32152, Mono, M72-mount, with TEC. Resolution of 16544 × 9200, pixel size of 3.2 µm × 3.2 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Features
- Resolution of 16544 × 9200, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports the flat field correction.
- Supports TEC mode to ensure image quality under long exposure.
- Adopts 4-link CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CH1520-90YM-M72-TF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX32152 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 53 mm × 29.4 mm |
| Resolution | 16544 × 9200 |
| Max. frame rate | 16.3 fps @ 16544 × 9200 Mono 8 |
| Dynamic range | 65.3 dB |
| SNR | 40 dB |
| Gain | 1.4x to 5.2x |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 24 VDC |
| Power consumption | Non-cooling: Typ. 17.7 W @ 24 VDC; Cooling: Typ. 31.7 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 100 mm × 100 mm × 86 mm (3.9" × 3.9" × 3.4") |
| Weight | Approx. 1.2 kg (2.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above) |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.78 kg |
