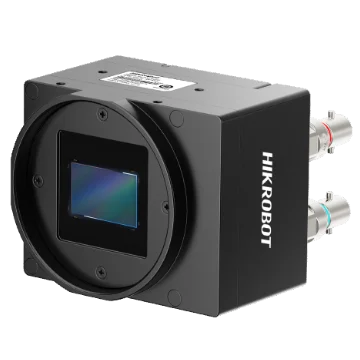

Hikrobot MV-CH1050-10YM-M58S-NL 105MP Area Scan Camera, CoaXPress, IMX927, Mono, M58-mount, Liquid Cooling
Model MV-CH1050-10YM-M58S-NL
Hikrobot MV-CH1050-10YM-M58S-NL 105MP Area Scan Camera, CoaXPress, IMX927, Mono, M58-mount, Liquid Cooling. Resolution of 10240 × 10240, and pixel size of 2.74 µm × 2.74 µm. Adopts global shutter CMOS sensor to provide high dynamic range and SNR, and high-quality images.
Features
- Resolution of 10240 × 10240, and pixel size of 2.74 µm × 2.74 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range and SNR, and high-quality images.
- Adopts 4-link CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard.
- Features liquid cooling for efficient heat dissipation and high-quality images.
Specifications
| Model | MV-CH1050-10YM-M58S-NL |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® BSI |
| Pixel size | 2.74 μm × 2.74 μm |
| Sensor size | 39.7 mm diagonal |
| Resolution | 10240 × 10240 |
| Max. frame rate | 45 fps @ 10240 × 10240 Mono 8 |
| Dynamic range | 60.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | 44 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, supports PoCXP |
| Power consumption | Typ. 14.3 W @ 12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 73 mm × 60 mm × 43.7 mm (2.9" × 2.4" × 1.7") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32-bit Windows 7/10, 64-bit Windows 10/11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.62 kg |
