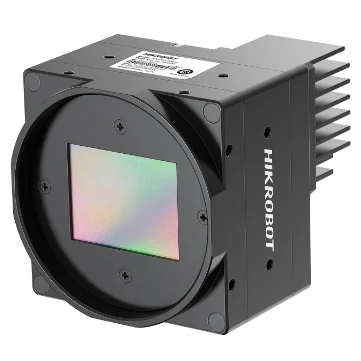

Hikrobot MV-CH650-90YM-M58S-NN V2 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, V2, M58-mount

Name: Hikrobot MV-CH650-90YM-M58S-NN V2 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, V2, M58-mount
Brand: Hikrobot
SKU: MV-CH650-90YM-M58S-NN V2

Model MV-CH650-90YM-M58S-NN V2

Hikrobot MV-CH650-90YM-M58S-NN V2 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, V2, M58-mount. Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm. Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.

Datasheet (PDF) - MV-CH650-90YM-M58S-NN V2 User manual (PDF) - MV-CH650-90YM-M58S-NN V2 CAD: 3D STEP + 2D DXF (ZIP) - MV-CH650-90YM-M58S-NN V2

Features

Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
Adopts CXP-12 interface to transmit data.
Compact design, low power consumption without cooling fan.
Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CH650-90YM-M58S-NN V2
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX3265
Pixel size	3.2 μm × 3.2 μm
Sensor size	29.9 mm × 22.4 mm
Resolution	9344 × 7000
Max. frame rate	71 fps @ 9344 × 7000 Mono 8
Dynamic range	66 dB
SNR	40 dB
Gain	1.25 ×
Exposure time	12 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	CoaXPress with Micro-BNC interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply	12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumption	Typ. 14.4 W @ 12 VDC
Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional)
Weight	Approx. 285 g (0.6 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or third-party software meeting with CoaXPress Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC, UL
Shipping weight (estimated)	0.50 kg
