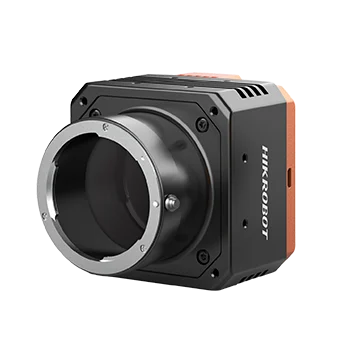

Hikrobot MV-CH650-90XM-M58S-NF 65MP Area Scan Camera, CXP-6, GMAX3265, Mono, M58-mount, with fan
Model MV-CH650-90XM-M58S-NF
Hikrobot MV-CH650-90XM-M58S-NF 65MP Area Scan Camera, CXP-6, GMAX3265, Mono, M58-mount, with fan. Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm. Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
Datasheet (PDF) - MV-CH650-90XM-M58S-NFUser manual (PDF) - MV-CH650-90XM-M58S-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH650-90XM-M58S-NF
Features
- Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard.
Specifications
| Model | MV-CH650-90XM-M58S-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3265 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 29.9 mm × 22.4 mm |
| Resolution | 9344 × 7000 |
| Max. frame rate | 31.5 fps @ 9216 × 7000 |
| Dynamic range | 66 dB |
| SNR | 40 dB |
| Gain | 1.25x to 6x |
| Exposure time | 14 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 10.5 W @ 24 VDC |
| Lens mount | M58*0.75, flange focal length 11.48 mm |
| Dimension | M58-mount with fan: 74 mm × 74 mm × 70.4 mm (2.9" × 2.9" × 2.8") |
| Weight | M58-mount with fan: approx. 470 g (1.0 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the CH Series CoaXPress Area Scan Cameras series
