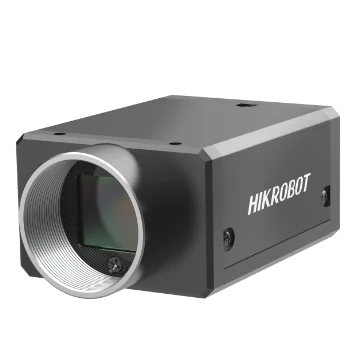

Hikrobot MV-CH250-90UC 25 MP USB 3.0 area scan camera, GMAX0505, Color, V4
Model MV-CH250-90UC
Hikrobot MV-CH250-90UC 25 MP USB 3.0 area scan camera, GMAX0505, Color, V4. Manual adjustment of gain, gamma correction, LUT and more Supports hardware trigger, software trigger and free-run modes
Datasheet (PDF, Chinese) - MV-CH250-90UCUser manual (PDF, Chinese) - MV-CH250-90UCCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-90UC
Features
- Manual adjustment of gain, gamma correction, LUT and more
- Supports hardware trigger, software trigger and free-run modes
- Flexible mounting: holes on the top and bottom panels to choose from as needed
- Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms
Specifications
| Model | MV-CH250-90UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1” |
| Resolution | 5120 × 5120 |
| Max. frame rate | 14 fps @5120 × 5120 Bayer BG 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x |
| Exposure time | 12 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer BG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 12~24 VDC, USB power supported |
| Power consumption | 3.6 W @ 5 VDC (USB 3.0 powered) |
| Lens mount | C-mount |
| Dimension | 29 mm x 44 mm × 59 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | Windows 7/10/11 32/64bits, Linux 32/64bits |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
