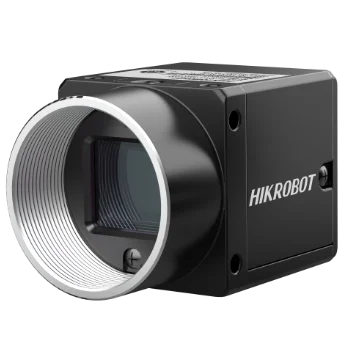

Hikrobot MV-CH120-60UM V5 12MP Area Scan Camera, V5, Mono
Model MV-CH120-60UM V5
Hikrobot MV-CH120-60UM V5 12MP Area Scan Camera, V5, Mono. Adopts new hardware platform to optimize logical resource and reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CH120-60UM V5User manual (PDF) - MV-CH120-60UM V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-60UM V5
Features
- Adopts new hardware platform to optimize logical resource and reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports CCM, Sequencer, Super Bayer, Super Palette, etc.
- Adopts brand new structure design and supports installation from four sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CH120-60UM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 31.3 fps @ 4096 × 3000 Mono 8 |
| Dynamic range | 67.2 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Global Shutter, Off/Once/Continuous exposure mode, supports TriggerWidth |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 2 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
