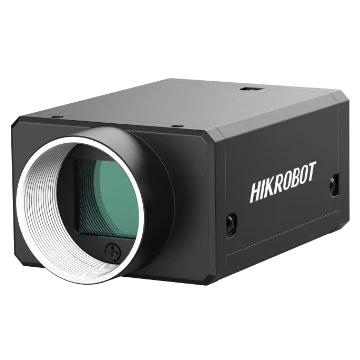

Hikrobot MV-CH120-60VC 12MP Area Scan Camera, Dual USB3.0, Color
Model MV-CH120-60VC
Hikrobot MV-CH120-60VC 12MP Area Scan Camera, Dual USB3.0, Color. Adopts dual USB 3.0 interfaces to transmit data. Adopts new hardware platform to optimize logical resource and reduce power consumption.
Datasheet (PDF) - MV-CH120-60VCUser manual (PDF) - MV-CH120-60VCCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-60VC
Features
- Adopts dual USB 3.0 interfaces to transmit data.
- Adopts new hardware platform to optimize logical resource and reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, and Sequencer, etc.
- Supports flexible installation with mounting holes on both top and bottom panels.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and the standard.
Specifications
| Model | MV-CH120-60VC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 60.2 fps @ 4096 × 3000 Bayer GB 8 |
| Dynamic range | 75.7 dB |
| SNR | 42.1 dB |
| Gain | High full well capacity: 0 dB to 21.5 dB; High sensitivity: 0 dB to 24 dB |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 3.7 W @ 5 VDC ; (dual USB 3.0 interfaces provide power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB 3.0 Vision, GenlCam |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.24 kg |
