Area scan cameras

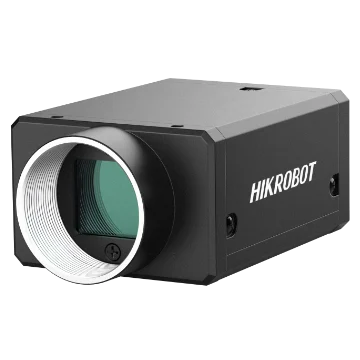

Hikrobot MV-CH250-90VC 25MP Area Scan Camera, dual USB3.0, GMAX0505, Color
Model MV-CH250-90VC
Hikrobot MV-CH250-90VC 25MP Area Scan Camera, dual USB3.0, GMAX0505, Color. Supports manual adjustment of gain, LUT, Gamma correction, etc. Adopts dual USB 3.0 interfaces to transmit data.
Datasheet (PDF) - MV-CH250-90VCUser manual (PDF) - MV-CH250-90VCCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-90VC
Features
- Supports manual adjustment of gain, LUT, Gamma correction, etc.
- Adopts dual USB 3.0 interfaces to transmit data.
- Supports hardware trigger, software trigger, and free run.
- Supports flexible installation via the installation holes.
- Adopts compact design for small spatial installation.
- Compatible GenlCam Standard.
Specifications
| Model | MV-CH250-90VC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 30 fps @5120 × 5120 Bayer BG 8 |
| Dynamic range | 65 dB |
| SNR | 40 dB |
| Gain | 2.0 x to 5.0 x |
| Exposure time | UltraShort exposure mode: 2 μs to 8 μs; Standard exposure mode: 9 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer BG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 5.5 W @ 5 VDC (dual USB 3.0 interfaces provide power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 40 °C (14 °F to 104 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH, no condensation |
| Client software | MVS |
| Operating system | 32/64-bit Windows XP/7/10/11 |
| Compatibility | GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
