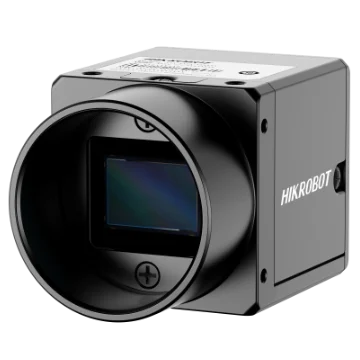

Hikrobot MV-CH120-90UM V5 12MP Area Scan Camera, USB3, GMAX3412, Mono, V5
Model MV-CH120-90UM V5
Hikrobot MV-CH120-90UM V5 12MP Area Scan Camera, USB3, GMAX3412, Mono, V5. Compact design supporting flexible mounting from 4 sides and compatible with C-mount lens. Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
Features
- Compact design supporting flexible mounting from 4 sides and compatible with C-mount lens.
- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Supports LSC, Sequencer, passive transmission, etc.
- Color camera supports functions like interpolation, white balance, CCM, Super Palette, and Super Bayer to provide high-quality images.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CH120-90UM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3412 |
| Pixel size | 3.4 μm × 3.4 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3072 |
| Max. frame rate | 30 fps @ 4096 × 3072 Mono 8 |
| Dynamic range | 66.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 6 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports TriggerWidth |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 5 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
