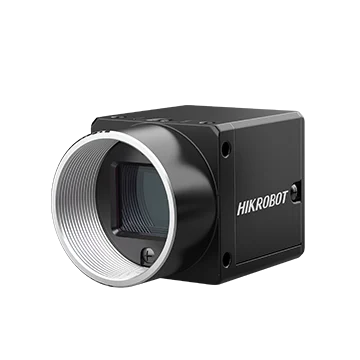

Hikrobot MV-CH120-20UC 12MP Area Scan Camera, USB3, XGS12000, Color, V4
Model MV-CH120-20UC
Hikrobot MV-CH120-20UC 12MP Area Scan Camera, USB3, XGS12000, Color, V4. Supports auto or manual adjustment for gain, exposure time, LUT and Gamma correction. Supports customized ROI, and horizontal and vertical reverse image output.
Datasheet (PDF) - MV-CH120-20UCUser manual (PDF) - MV-CH120-20UCCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-20UC
Features
- Supports auto or manual adjustment for gain, exposure time, LUT and Gamma correction.
- Supports customized ROI, and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger and free run mode.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocols and standards.
Specifications
| Model | MV-CH120-20UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi XGS12000 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1” |
| Resolution | 4096 × 3072 |
| Max. frame rate | 28 fps @ 4096 × 3072 Bayer RG 8 |
| Dynamic range | 68 dB |
| SNR | 40 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 52 μs to 161 μs; Standard exposure mode: 162 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 3.2 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
