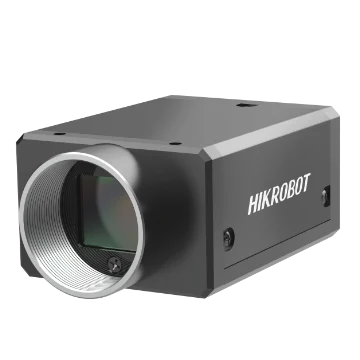

Hikrobot MV-CH140-60UM 14MP Area Scan Camera, Mono
Model MV-CH140-60UM
Hikrobot MV-CH140-60UM 14MP Area Scan Camera, Mono. Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc. Supports customized ROI, horizontal and vertical reverse image output.
Datasheet (PDF) - MV-CH140-60UMUser manual (PDF) - MV-CH140-60UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CH140-60UM
Features
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CH140-60UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3 μm × 3 μm |
| Sensor size | 1" |
| Resolution | 4708 × 2824 |
| Max. frame rate | 27 fps @ 4708 × 2824 Mono 8 |
| Dynamic range | 56.9 dB |
| SNR | 41.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 80 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 4.0 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 113 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.26 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
