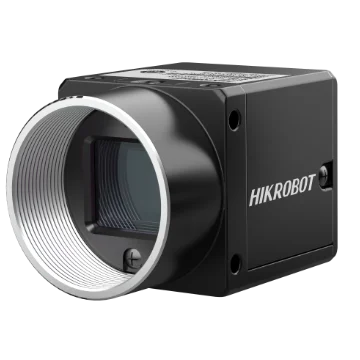

Hikrobot MV-CH120-60UC 12MP Area Scan Camera, Color
Model MV-CH120-60UC
Hikrobot MV-CH120-60UC 12MP Area Scan Camera, Color. Adopts new hardware platform to optimize logical resource and reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CH120-60UCUser manual (PDF) - MV-CH120-60UCCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-60UC
Features
- Adopts new hardware platform to optimize logical resource and reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports CCM, Sequencer, Super Bayer, Super Palette, etc.
- Adopts brand new structure design and supports installation from four sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CH120-60UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 30.7 fps @ 4096 × 3000 Bayer GB 8 |
| Dynamic range | 67.5 dB |
| SNR | 44.2 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 45 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer GB 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.4 W @ 5 VDC; (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
