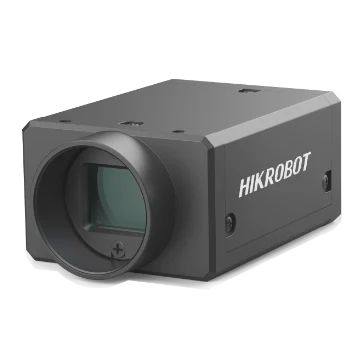

Hikrobot MV-CH120-11UM 12MP Area Scan Camera, USB3, IMX304, High-speed version, Mono
Model MV-CH120-11UM
Hikrobot MV-CH120-11UM 12MP Area Scan Camera, USB3, IMX304, High-speed version, Mono. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc. Supports hardware triggering, software triggering and free run mode.
Datasheet (PDF) - MV-CH120-11UMUser manual (PDF) - MV-CH120-11UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CH120-11UM
Features
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
- Supports hardware triggering, software triggering and free run mode.
- Supports customized ROI, and horizontal and vertical reverse image output.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CH120-11UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX304 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 30.3 fps @ 4096 × 3000 Mono 8 |
| Dynamic range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed /12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 4.67 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
