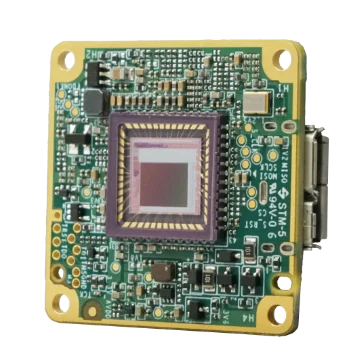

Hikrobot MV-CB013-A0UM-C 1.3MP Board Level Camera, USB3, mono, C-mount
Model MV-CB013-A0UM-C
Hikrobot MV-CB013-A0UM-C 1.3MP Board Level Camera, USB3, mono, C-mount. Compact design for flexible installation. Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
Datasheet (PDF) - MV-CB013-A0UM-CUser manual (PDF) - MV-CB013-A0UM-CCAD: 3D STEP + 2D DXF (ZIP) - MV-CB013-A0UM-C
Features
- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
- Adopts image interpolation algorithm for color cameras to have better color correction.
- Adopts USB3.0 interface to provide power supply and transmit data.
- Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.
Specifications
| Model | MV-CB013-A0UM-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Pixel size | 4.8 μm × 4.8 μm |
| Sensor size | 1/2" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 201 fps @1280 × 1024 |
| Dynamic range | 53 dB |
| SNR | 40 dB |
| Gain | 0 dB to 16 dB |
| Exposure time | 9 μs to 10 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB3.0 power supply |
| Power consumption | Typ. 1.6 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS or third-party software compatible with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.14 kg |
