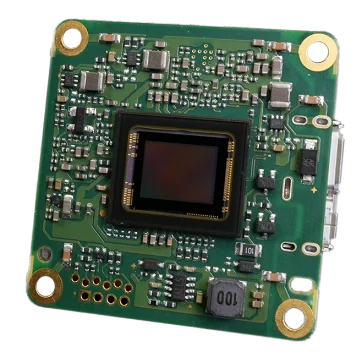

Hikrobot MV-CB120-10UM-B V4 12MP Board Level Camera, USB3, IMX226, V4, Mono, Bare Board
Model MV-CB120-10UM-B V4
Hikrobot MV-CB120-10UM-B V4 12MP Board Level Camera, USB3, IMX226, V4, Mono, Bare Board. Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.
Features
- Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc.
- Adopts image interpolation algorithm for color camera to have better color correction.
- Power supply and data transmission via USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB120-10UM-B V4 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 μm × 1.85 μm |
| Sensor size | 1/1.7" |
| Resolution | 4032 × 3036 |
| Max. frame rate | 30 fps @ 4032 × 3036 Mono 8 |
| Dynamic range | 64.6 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 33 μs to 2 sec |
| Exposure mode | Supports Off/ Once/ Continuous exposure mode, and Global Reset. |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC (USB power supply) |
| Lens mount | None |
| Dimension | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") |
| Weight | Approx. 10 g (0.02 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.11 kg |
