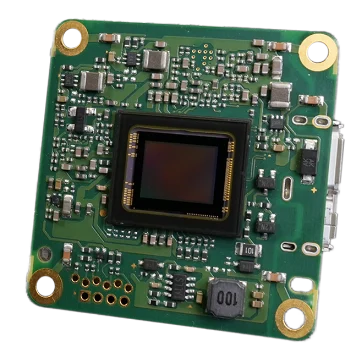

Hikrobot MV-CB060-10UM-B 6MP Board Level Camera, USB3, IMX178, Mono, Bare Board, V4
Model MV-CB060-10UM-B
Hikrobot MV-CB060-10UM-B 6MP Board Level Camera, USB3, IMX178, Mono, Bare Board, V4. Compact design for flexible installation. Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
Datasheet (PDF) - MV-CB060-10UM-BUser manual (PDF) - MV-CB060-10UM-BCAD: 3D STEP + 2D DXF (ZIP) - MV-CB060-10UM-B
Features
- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
- Supports HDR function with different exposure time and gain.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB060-10UM-B |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 60.9 fps @ 3072 × 2048 Mono 8 |
| Dynamic range | 66 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 8 μs to 1 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC |
| Lens mount | None |
| Dimension | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") |
| Weight | Approx. 10 g (0.02 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.11 kg |
