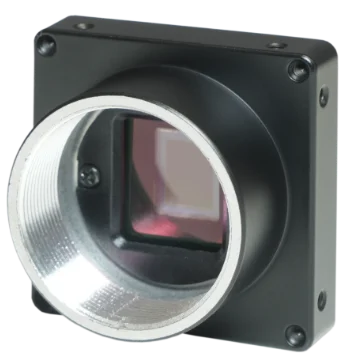

Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, V4, Color, C-mount
Model MV-CB120-10UC-C V4
Hikrobot MV-CB120-10UC-C V4 12MP Board Level Camera, USB3, IMX226, V4, Color, C-mount. Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.
Datasheet (PDF) - MV-CB120-10UC-C V4User manual (PDF) - MV-CB120-10UC-C V4CAD: 3D STEP + 2D DXF (ZIP) - MV-CB120-10UC-C V4
Features
- Supports auto and manual adjustment for gain, exposure control, white balance, Gamma, LUT, etc.
- Adopts image interpolation algorithm for color camera to have better color correction.
- Power supply and data transmission via USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB120-10UC-C V4 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 μm × 1.85 μm |
| Sensor size | 1/1.7" |
| Resolution | 4032 × 3036 |
| Max. frame rate | 30 fps @ 4032 × 3036 Bayer RG 8 |
| Dynamic range | 64.6 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 33 μs to 2 sec |
| Exposure mode | Supports Off/ Once/ Continuous exposure mode, and Global Reset. |
| Mono/color | Color |
| Pixel format | Mono8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 2 W @ 5 VDC (USB power supply) |
| Lens mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.14 kg |
