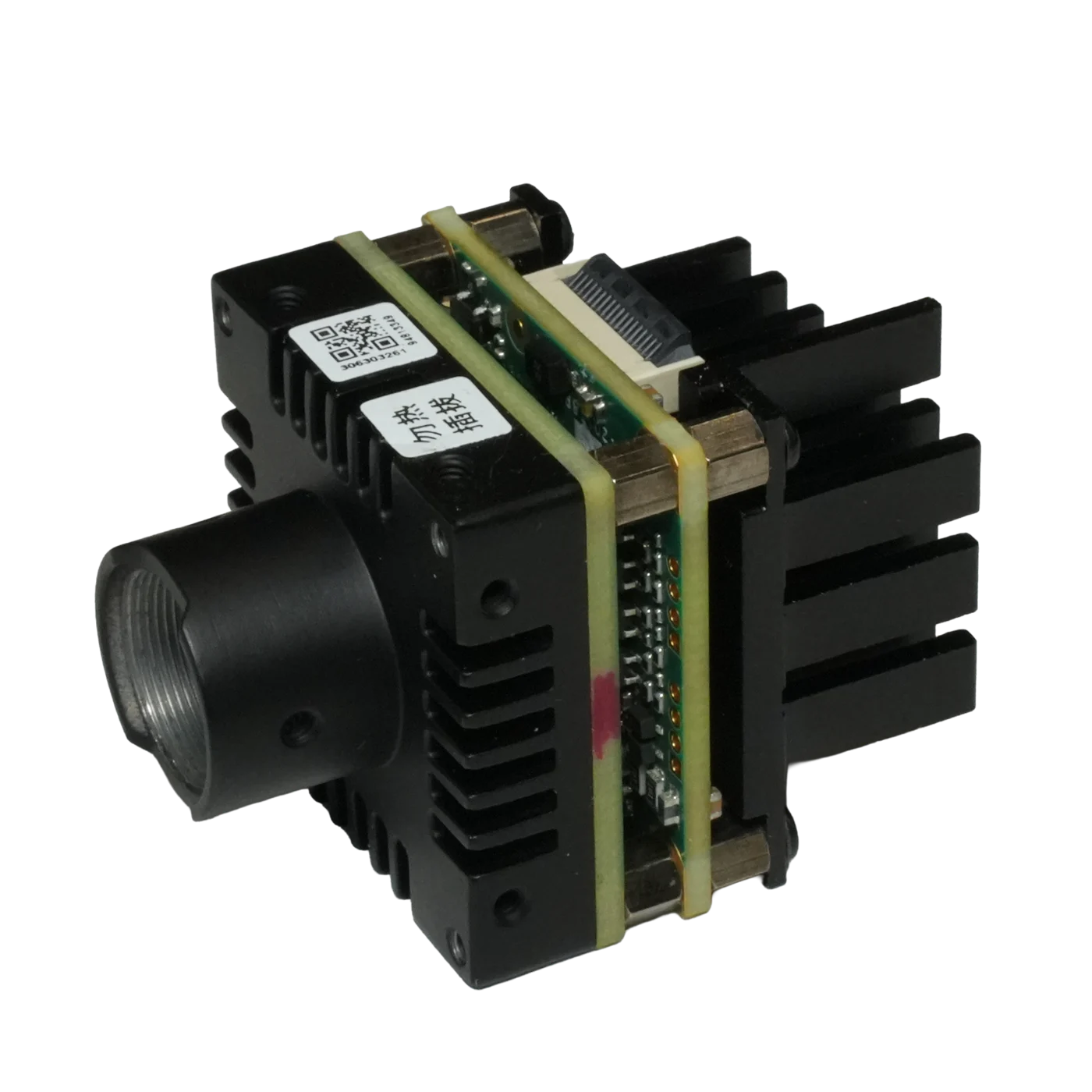

Hikrobot MV-CB020-61UM-S-F 2MP Board Level Camera, USB3.0, FPC, Mono, M12-mount
Model MV-CB020-61UM-S-F
Hikrobot MV-CB020-61UM-S-F 2MP Board Level Camera, USB3.0, FPC, Mono, M12-mount. USB3.0 supports FPC connection to meet limited spatial requirements. Supports auto or manual adjustment of gain, exposure time, white balance, LUT correction, Gamma correction, etc.
Datasheet (PDF) - MV-CB020-61UM-S-FUser manual (PDF) - MV-CB020-61UM-S-FCAD: 3D STEP + 2D DXF (ZIP) - MV-CB020-61UM-S-F
Features
- USB3.0 supports FPC connection to meet limited spatial requirements.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT correction, Gamma correction, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB020-61UM-S-F |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 99 fps @ 1624 × 1240 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | High full well capacity: 0 dB to 12.8 dB; High sensitivity: 0 dB to 24 dB |
| Exposure time | High full well capacity: 30 μs to 10 sec; High sensitivity: 5 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | 5 V, USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC (USB power supply) |
| Lens mount | M12-mount |
| Dimension | 29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 37 g (0.08 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | KC, CE, RoHS |
| Shipping weight (estimated) | 0.15 kg |
