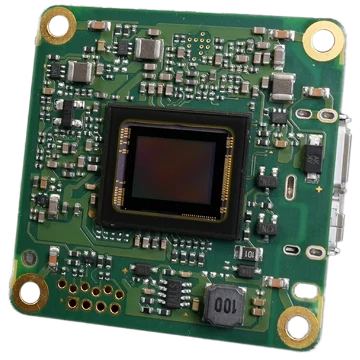

Hikrobot MV-CB016-10UM-B 1.6MP Board Level Camera, USB3, IMX273, Mono, Bare Board
Model MV-CB016-10UM-B
Hikrobot MV-CB016-10UM-B 1.6MP Board Level Camera, USB3, IMX273, Mono, Bare Board. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.
Datasheet (PDF) - MV-CB016-10UM-BUser manual (PDF) - MV-CB016-10UM-BCAD: 3D STEP + 2D DXF (ZIP) - MV-CB016-10UM-B
Features
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
- Adopts image interpolation algorithm for color camera to have better color correction.
- Power supply and data transmission via USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB016-10UM-B |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX273 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max. frame rate | 165.4 fps @ 1440 × 1080 Mono 8 (ADC 12); 249.1 fps @ 1440 × 1080 Mono 8 (ADC 8) |
| Dynamic range | 71.5 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 17 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC |
| Lens mount | None |
| Weight | Approx. 10 g (0.02 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Dimension (without lens) | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.11 kg |
